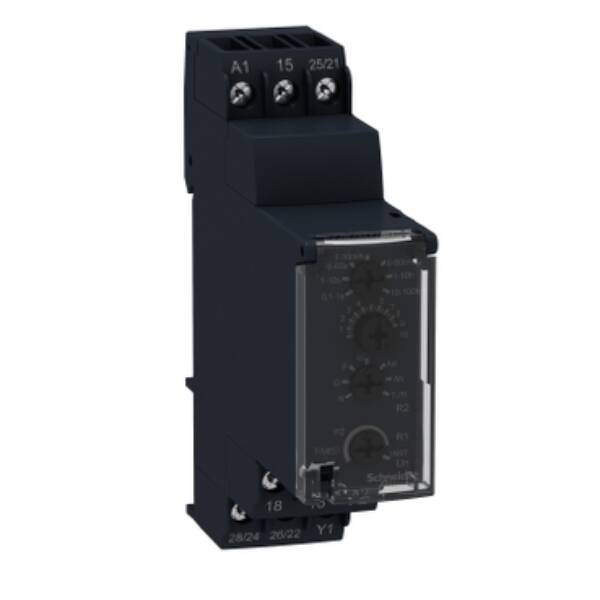

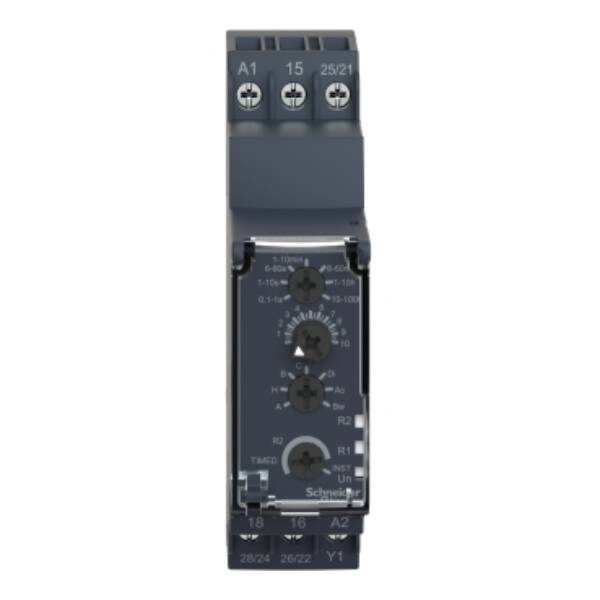

This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand

Schneider Electric

Range

Harmony Timer Relays

Part No

RE22R2MMW

Weight (kg)

0.11 kg

Type

Harmony Timer Relays

Type of electric connection

Screw connection

Function delay on de-energization

TRUE

Pluggable on auxiliary contact block

FALSE

Clock function, starting with pause, variable

FALSE

Clock function, starting with pulse, variable

FALSE

Number of outputs, undelayed, change-over contact

1

Function floating contact on de-energization

FALSE

Function pulse shaping

TRUE

Function delay-on energization

TRUE

Number of outputs, delayed, change-over contact

2

Voltage type for actuating

AC/DC

Height

90

With semiconductor output

FALSE

Suitable for DIN rail (top hat rail) mounting

TRUE

Width

22.5

Rated control supply voltage AC 50 Hz

12…240 Volt

Rated control supply voltage AC 60 Hz

12…240 Volt

Function floating contact on energization

FALSE

Nominal current

8

Depth

79.5

Outputs, reversible delayed/undelayed

TRUE

Complete with socket

FALSE

Function star-delta

FALSE

Function flashing, starting with pause, fixed time

TRUE

Rated control supply voltage DC

12…240 Volt

Function flashing, starting with pulse, fixed time

TRUE

Remote operation possible

TRUE

Suitable as remote control

FALSE

Time range

0.1…360000 Second
