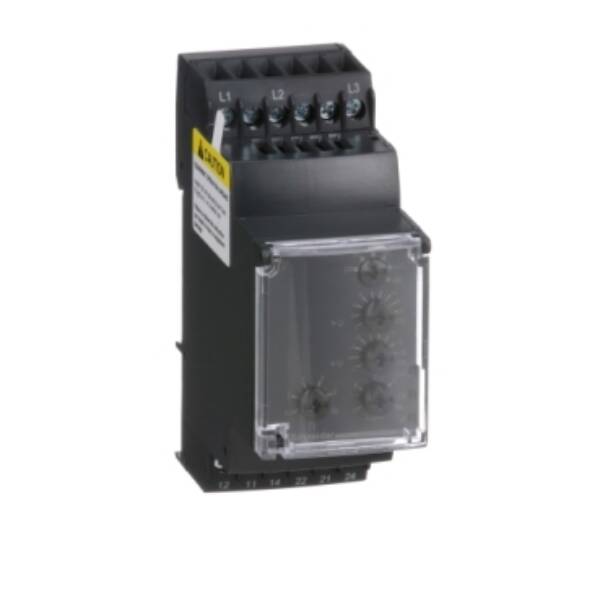

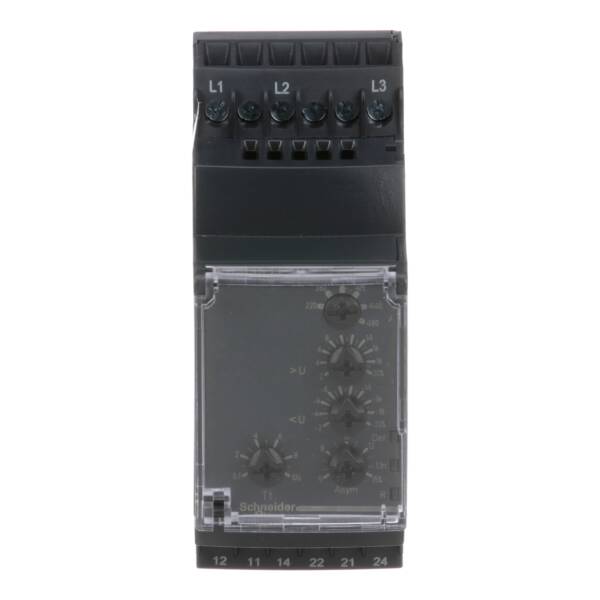

This Harmony RM35-T multi function control relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand

Schneider Electric

Range

Harmony Control Relays

Part No

RM35TF30

Weight (kg)

0.13 kg

Type

Harmony Control Relays

Type of electric connection

Screw connection

Voltage type (operating voltage)

DC

Height

90

Max. permitted delay-on energization time

0.65

Width

35

Voltage measuring range

194…528 Volt

Phase sequence monitoring

TRUE

Function over voltage detection

TRUE

Phase imbalance monitoring

TRUE

Phase failure detection

TRUE

Depth

72

Function under voltage detection

TRUE

Number of contacts as change-over contact

2

With detachable clamps

FALSE

Max. permitted off-delay time

10

Min. adjustable off-delay time

0.1
