LTMR100EBD

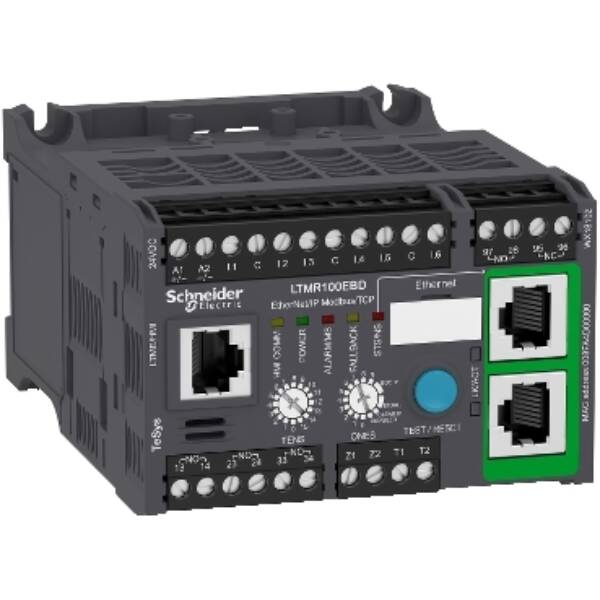

Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 5 to 100A, 24 VDC - Schneider Electric - LTMR100EBD
Control
List Price £775.69
+VAT
Our Price £581.77
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Ethernet/IP and Modbus/TCP protocol is used by this controller. Ethernet TCP/IP communication is used. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 5 to 100 amperes. 24 VDC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
Brand
Schneider Electric
Range
TeSys T
Part No
LTMR100EBD
Weight (kg)
0.52 kg
Type
TeSys T
Current detection module
TRUE
Number of outputs, with contact
5
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Type of interface
Other
Rated operation current Ie
5…100 A
Input for analogue temperature sensor
TRUE
Input for earth fault detection
TRUE
Rated voltage Ue at DC
20.4…26.24 V
Type of connection system
Screw connection
Voltage type for actuating
DC
Degree of protection (IP)
IP20
Voltage detection module
FALSE
Number of binary inputs
6
Input for thermistor connection
TRUE
Rated control supply voltage Us at DC
24 V
Datasheet for LTMR100EBD - Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6 logic inputs, 3 logic outputs, 5 to 100A, 24 VDC - Schneider Electric - LTMR100EBD
Download
