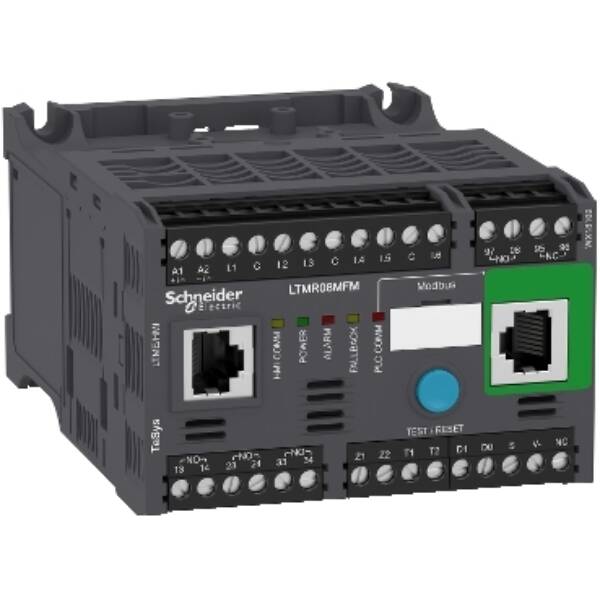

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys T LTMR controller that measure current range of 0.4-8A with a supply voltage of 100-240 Vac and uses Modbus as the communication protocol. This controller measures temperature, phase current, imbalance current, average current and earth-fault current. The dimensions of this device are 61 mm (H) X 91 mm (W) X 122.5 mm (D) and it weighs 0.53 kg.

Brand

Schneider Electric

Range

TeSys T

Part No

LTMR08MFM

Weight (kg)

0.52 kg

Type

TeSys T

Input for thermistor connection

TRUE

Current detection module

TRUE

Number of outputs, with contact

5

Rated voltage Ue at AC 50 Hz

93.5…264 Volt

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Type of interface

Modbus

Rated operating frequency

50…60 Hertz

Rated operation current Ie

0.4…8 Ampere

Input for analogue temperature sensor

TRUE

Input for earth fault detection

TRUE

Type of connection system

Screw connection

Degree of protection (IP)

IP20

Voltage detection module

FALSE

Rated voltage Ue at AC 60 Hz

93.5…264 Volt
