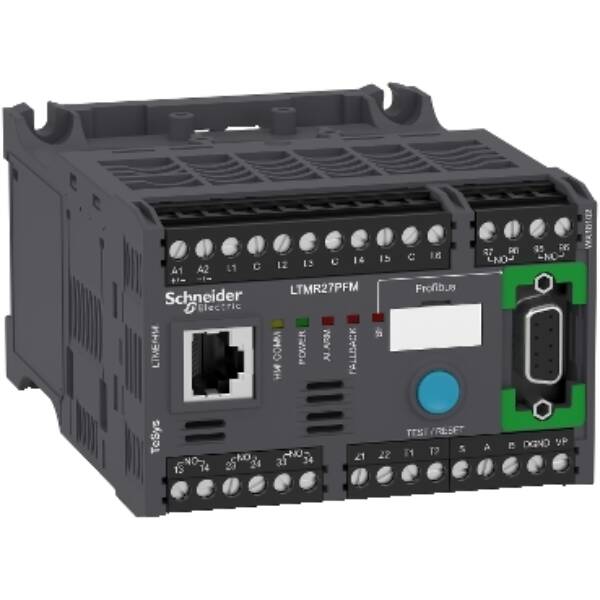

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Profibus DP protocol is used by this controller. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 1.35 to 27 amperes. 120 to 240 VAC is used to power this controller. Controller is 2.40 inches tall, 3.58 inches wide and 4.82 inches deep. Controller weighs 1.17 lbs. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Brand

Schneider Electric

Range

TeSys T

Part No

LTMR27PFM

Weight (kg)

0.53 kg

Type

TeSys T

Current detection module

TRUE

Number of outputs, with contact

5

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Rated voltage Ue at AC 50 Hz

93.5…264 V

Type of interface

PROFIBUS

Rated operation current Ie

1.35…27 A

Input for analogue temperature sensor

TRUE

Input for earth fault detection

TRUE

Type of connection system

Screw connection

Voltage type for actuating

AC

Degree of protection (IP)

IP20

Voltage detection module

FALSE

Rated voltage Ue at AC 60 Hz

93.5…264 V

Rated control supply voltage Us at AC 50HZ

100…240 V

Rated control supply voltage Us at AC 60HZ

100…240 V

Number of binary inputs

6

Input for thermistor connection

TRUE

Rated operation frequency

50…60 Hz
