Monolithic pilot light, Harmony XB5, grey plastic, orange, 22mm, universal LED, plain lens, 110…120V AC - Schneider Electric - XB5EVG5

Monolithic pilot light, Harmony XB5, grey plastic, orange, 22mm, universal LED, plain lens, 110…120V AC - Schneider Electric - XB5EVG5

XB5EVG5

Monolithic pilot light, Harmony XB5, grey plastic, orange, 22mm, universal LED, plain lens, 110…120V AC - Schneider Electric - XB5EVG5

Control

~~List Price £19.01 +VAT~~

Our Price £14.26 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

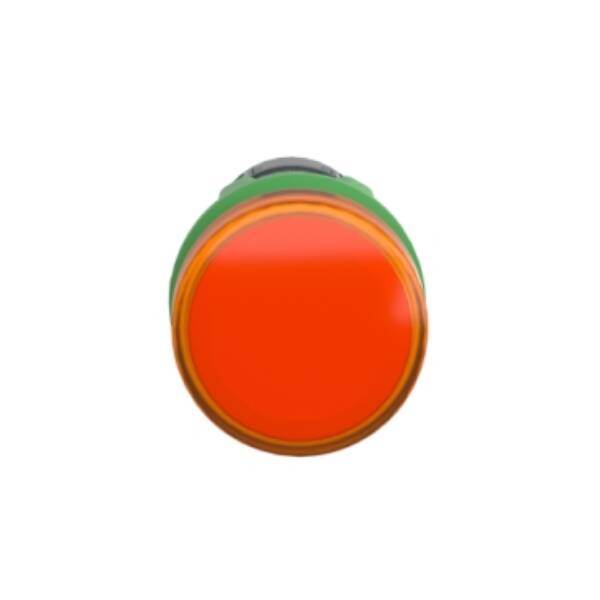

This Harmony XB5, plain lens monolithic orange pilot light is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric
Range: Harmony XB5
Part No: XB5EVG5
Weight (kg): 0.02 kg
Type: Harmony XB5
With light source: TRUE
Number of indicator lights: 1
Colour lens: Orange
Rated operating voltage Ue: 110…120 V
Colour front ring: Chrome
Type of electric connection: Screw connection
Voltage type: AC/DC
Material front ring: Plastic
Hole diameter: 22.5
Type of lamp socket: LED
Construction type lens: Round
With front ring: TRUE
Degree of protection (IP): IP66
Type of lens: Flat
Degree of protection (NEMA): Other

Datasheet for XB5EVG5 - Monolithic pilot light, Harmony XB5, grey plastic, orange, 22mm, universal LED, plain lens, 110…120V AC - Schneider Electric - XB5EVG5

Download
