RE22R2MYMR

Modular timing relay, 8 A, 2 CO, 0.05s…300h, multifunction, 24...240 V AC/DC - Schneider Electric - RE22R2MYMR

Control

~~List Price £105.55 +VAT~~

Our Price £79.16 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

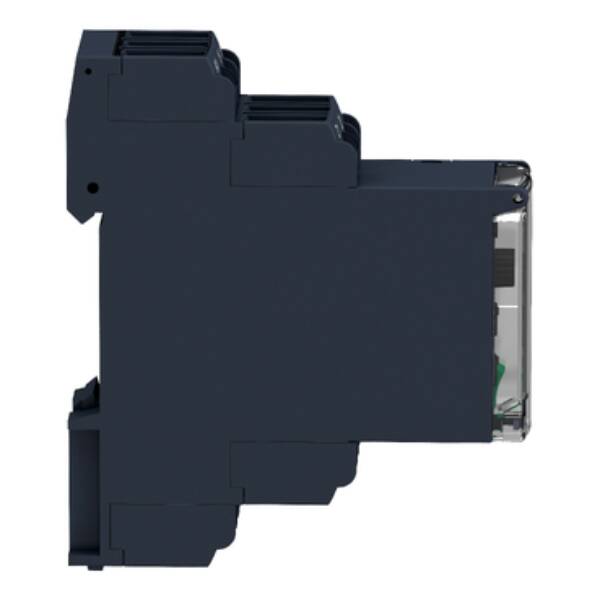

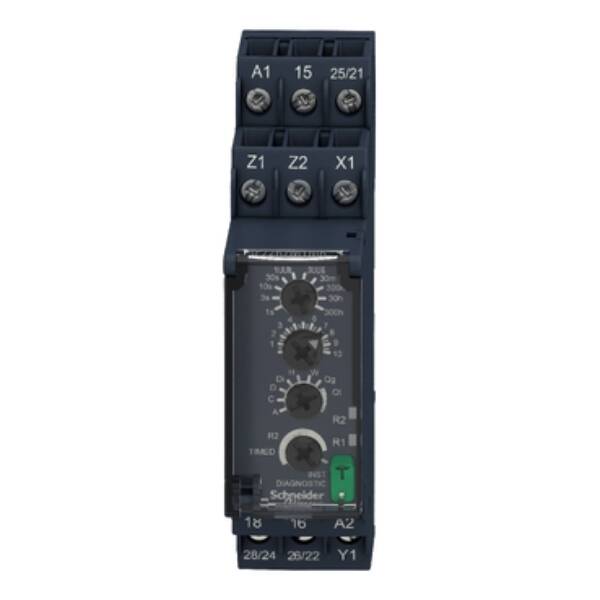

This Harmony RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8A, is 22.5mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE22R2MYMR
Weight (kg): 0.12 kg
Type: Harmony Timer Relays
Number of outputs, delayed, normally open contact: 2
Number of outputs, delayed, normally closed contact: 2
Type of electric connection: Screw connection
Function delay on de-energization: TRUE
Clock function, starting with pause, variable: FALSE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pulse, variable: FALSE
Number of outputs, undelayed, change-over contact: 1
Number of outputs, undelayed, normally open contact: 1
Function floating contact on de-energization: FALSE
Number of outputs, undelayed, normally closed contact: 1
Function pulse shaping: FALSE
Suitable for front mounting: FALSE
Function delay-on energization: TRUE
Number of outputs, delayed, change-over contact: 2
Voltage type for actuating: AC/DC
Height: 90
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: TRUE
Width: 22.5
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Function floating contact on energization: TRUE
Nominal current: 8
Depth: 73
Outputs, reversible delayed/undelayed: TRUE
With plug-in socket: FALSE
Function star-delta: TRUE
Function flashing, starting with pause, fixed time: TRUE
Function flashing, starting with pulse, fixed time: TRUE
Rated control supply voltage Us at DC: 24…240 V
Remote operation possible: FALSE
Suitable for remote control: FALSE
Time range: 0.05…1080000 s
