Modular timing relay, 8 A, 2 CO, 0.05 s...300 h, off delay, 24...240 V AC/DC - Schneider Electric - RE22R2CMR

Modular timing relay, 8 A, 2 CO, 0.05 s...300 h, off delay, 24...240 V AC/DC - Schneider Electric - RE22R2CMR

RE22R2CMR

Modular timing relay, 8 A, 2 CO, 0.05 s...300 h, off delay, 24...240 V AC/DC - Schneider Electric - RE22R2CMR

Control

~~List Price £86.37 +VAT~~

Our Price £64.78 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

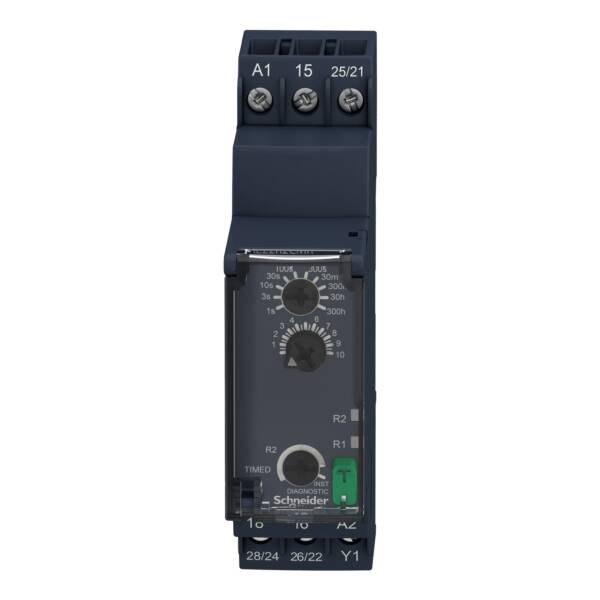

This Harmony RE22 timing relay can be set between 0.05 seconds and 300 hours, has an output rating of 8A, is 22.5mm wide and can be supplied with 24V to 240V AC. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers function C timing. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE22R2CMR
Weight (kg): 0.11 kg
Type: Harmony Timer Relays
Number of outputs, delayed, normally open contact: 2
Number of outputs, delayed, normally closed contact: 2
Type of electric connection: Screw connection
Function delay on de-energization: TRUE
Clock function, starting with pause, variable: FALSE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pulse, variable: FALSE
Number of outputs, undelayed, change-over contact: 1
Number of outputs, undelayed, normally open contact: 1
Number of outputs, undelayed, normally closed contact: 1
Function floating contact on de-energization: FALSE
Suitable for front mounting: FALSE
Function pulse shaping: FALSE
Number of outputs, delayed, change-over contact: 2
Function delay-on energization: FALSE
Height: 90
Voltage type for actuating: AC/DC
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: TRUE
Width: 22.5
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Function floating contact on energization: FALSE
Nominal current: 8
Depth: 73
Outputs, reversible delayed/undelayed: TRUE
With plug-in socket: FALSE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: FALSE
Function flashing, starting with pulse, fixed time: FALSE
Rated control supply voltage Us at DC: 24…240 V
Remote operation possible: FALSE
Time range: 0.05…1080000 s
Suitable for remote control: FALSE

Datasheet for RE22R2CMR - Modular timing relay, 8 A, 2 CO, 0.05 s...300 h, off delay, 24...240 V AC/DC - Schneider Electric - RE22R2CMR
