RE22R1MAMR

Modular timing relay, 8 A, 1 CO, 0.05 s…300 h, on delay, 24...240 V AC/DC - Schneider Electric - RE22R1MAMR

Control

~~List Price £86.37 +VAT~~

Our Price £64.78 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

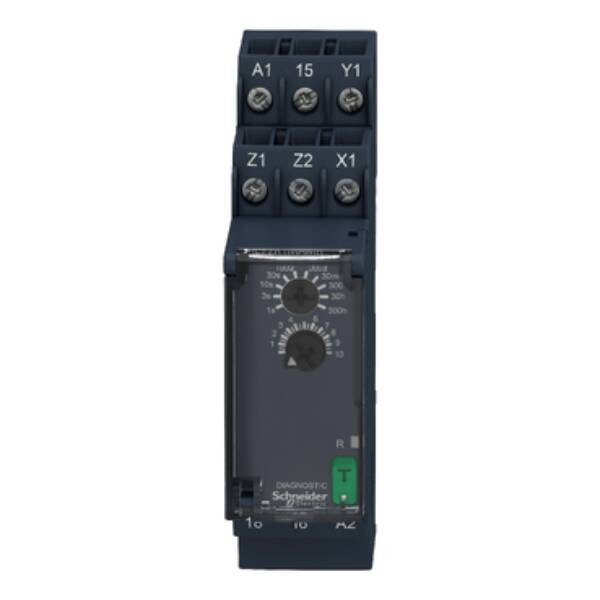

This Harmony RE22 timing relay can be set between 0.5mm wide and can be supplied with 24V to 240V AC. This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It also offers a sealable cover, simple and precise settings with rotary trimmers. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. Diagnostic button allows simple setup and trouble shooting by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE22R1MAMR
Weight (kg): 0.10 kg
Type: Harmony Timer Relays
Number of outputs, delayed, normally open contact: 1
Number of outputs, delayed, normally closed contact: 1
Type of electric connection: Screw connection
Function delay on de-energization: FALSE
Clock function, starting with pause, variable: FALSE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pulse, variable: FALSE
Function floating contact on de-energization: FALSE
Function pulse shaping: FALSE
Suitable for front mounting: FALSE
Function delay-on energization: TRUE
Number of outputs, delayed, change-over contact: 1
Voltage type for actuating: AC/DC
Height: 90
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: TRUE
Width: 22.5
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Function floating contact on energization: FALSE
Nominal current: 8
Depth: 73
Outputs, reversible delayed/undelayed: FALSE
With plug-in socket: FALSE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: FALSE
Function flashing, starting with pulse, fixed time: FALSE
Rated control supply voltage Us at DC: 24…240 V
Remote operation possible: FALSE
Suitable for remote control: FALSE
Time range: 0.05…1080000 s

Datasheet for RE22R1MAMR - Modular timing relay, 8 A, 1 CO, 0.05 s…300 h, on delay, 24...240 V AC/DC - Schneider Electric - RE22R1MAMR
