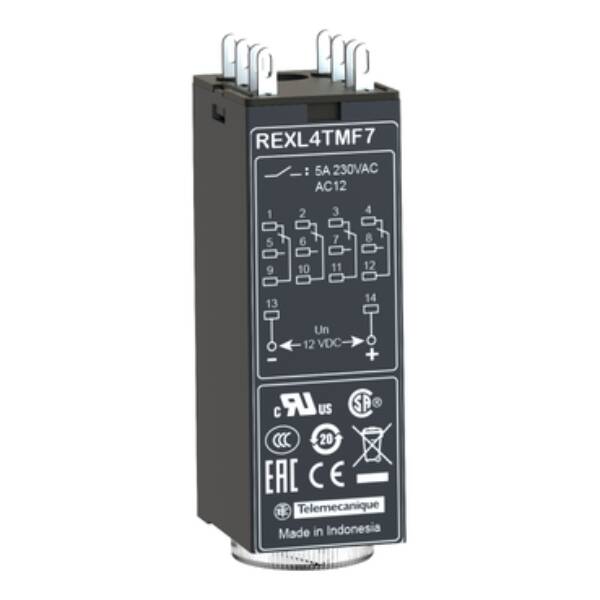

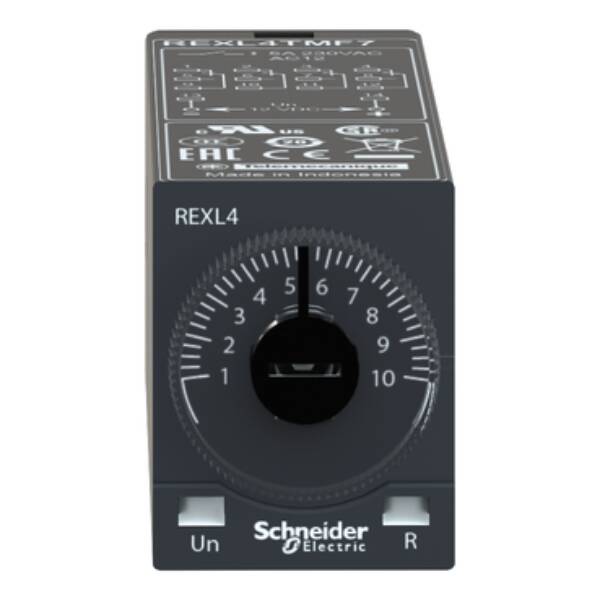

Modular timing relay, 5 A, 4 CO, 0.1 s..100 h, on-Delay, 120 V AC - Schneider Electric - REXL4TMF7

Modular timing relay, 5 A, 4 CO, 0.1 s..100 h, on-Delay, 120 V AC - Schneider Electric - REXL4TMF7

REXL4TMF7

Modular timing relay, 5 A, 4 CO, 0.1 s..100 h, on-Delay, 120 V AC - Schneider Electric - REXL4TMF7

Control

~~List Price £56.38 +VAT~~

Our Price £42.29 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 120V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: REXL4TMF7
Weight (kg): 0.05 kg
Type: Harmony Timer Relays
Type of electric connection: Plug-in connection
Function delay on de-energization: FALSE
Clock function, starting with pause, variable: FALSE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pulse, variable: FALSE
Function floating contact on de-energization: FALSE
Function pulse shaping: FALSE
Suitable for front mounting: FALSE
Number of outputs, delayed, change-over contact: 4
Function delay-on energization: TRUE
Voltage type for actuating: AC
Height: 27
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: FALSE
Width: 21
Rated control supply voltage Us at AC 50HZ: 120 V
Rated control supply voltage Us at AC 60HZ: 120 V
Function floating contact on energization: FALSE
Nominal current: 5
Depth: 63
Outputs, reversible delayed/undelayed: FALSE
With plug-in socket: TRUE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: FALSE
Function flashing, starting with pulse, fixed time: FALSE
Rated control supply voltage Us at DC: 0 V
Remote operation possible: FALSE
Suitable for remote control: FALSE
Time range: 0.1…360000 s

Datasheet for REXL4TMF7 - Modular timing relay, 5 A, 4 CO, 0.1 s..100 h, on-Delay, 120 V AC - Schneider Electric - REXL4TMF7

Download
