RE48AML12MW

Modular timing relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC - Schneider Electric - RE48AML12MW

Control

~~List Price £102.03 +VAT~~

Our Price £76.52 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

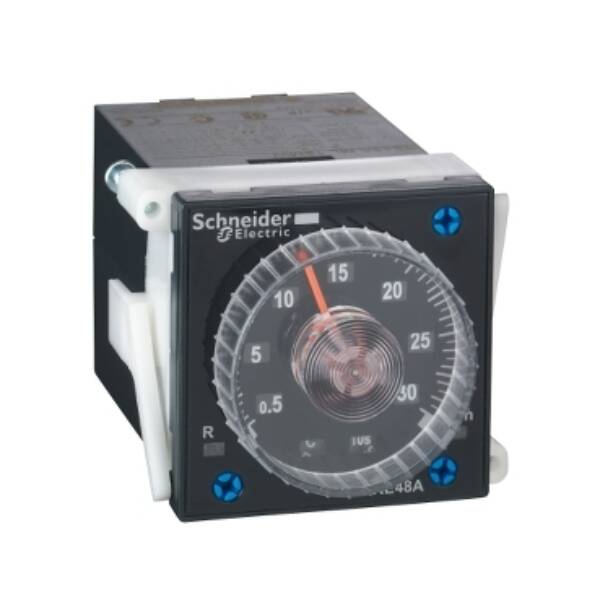

This Harmony RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE48AML12MW
Weight (kg): 0.13 kg
Type: Harmony Timer Relays
Type of electric connection: Screw connection
Function delay on de-energization: TRUE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pause, variable: FALSE
Clock function, starting with pulse, variable: FALSE
Function floating contact on de-energization: FALSE
Suitable for front mounting: TRUE
Function pulse shaping: TRUE
Function delay-on energization: TRUE
Number of outputs, delayed, change-over contact: 2
Voltage type for actuating: AC/DC
Height: 48
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: FALSE
Width: 48
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Function floating contact on energization: FALSE
Nominal current: 5
Depth: 80
Outputs, reversible delayed/undelayed: FALSE
With plug-in socket: TRUE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: TRUE
Function flashing, starting with pulse, fixed time: TRUE
Rated control supply voltage Us at DC: 24…240 V
Remote operation possible: FALSE
Time range: 0.02…1088888 s
Suitable for remote control: FALSE

Datasheet for RE48AML12MW - Modular timing relay, 5 A, 2 CO, 0.2 s...300 h, time delay, 24...240 V AC/DC - Schneider Electric - RE48AML12MW

Download
