Modular liquid level control relay, 8 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22LA32MR

Modular liquid level control relay, 8 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22LA32MR

RM22LA32MR

Modular liquid level control relay, 8 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22LA32MR

Control

~~List Price £122.25 +VAT~~

Our Price £91.69 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

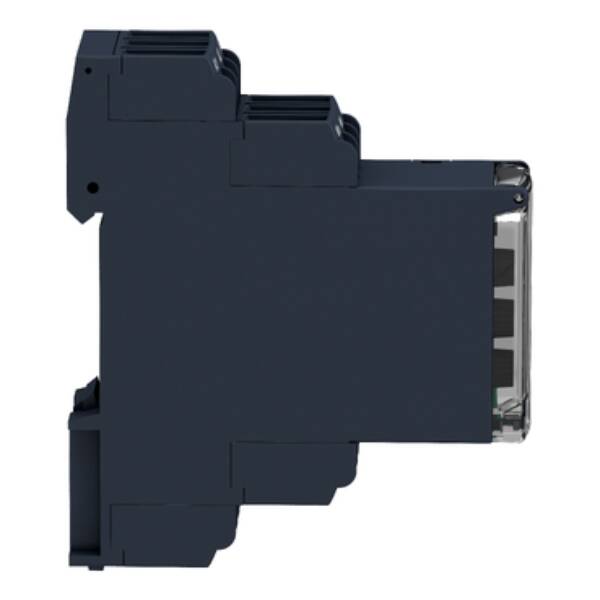

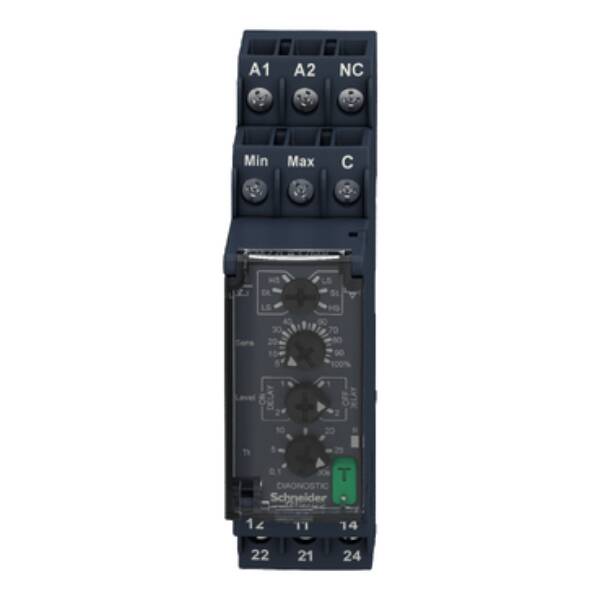

This Harmony RM22-LA relay allows monitoring of liquid level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Control Relays
Part No: RM22LA32MR
Weight (kg): 0.12 kg
Type: Harmony Control Relays
Width: 22.5
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Response value sensitivity adjustable: TRUE
Cascadable: FALSE
Type of electric connection: Screw connection
Physical measurement principle: Conductive
Number of inputs for electrodes: 3
Depth: 73
Number of contacts as change-over contact: 2
Voltage type for actuating: AC/DC
Height: 90
Rated control supply voltage Us at DC: 24…240 V
With detachable clamps: FALSE
Number of contacts as normally closed contact: 2
Max. permitted operate delay time: 30
Min. adjustable operate delay time: 0.1
Max. permitted off-delay time: 30
Min. adjustable off-delay time: 0.1

Datasheet for RM22LA32MR - Modular liquid level control relay, 8 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22LA32MR

Download
