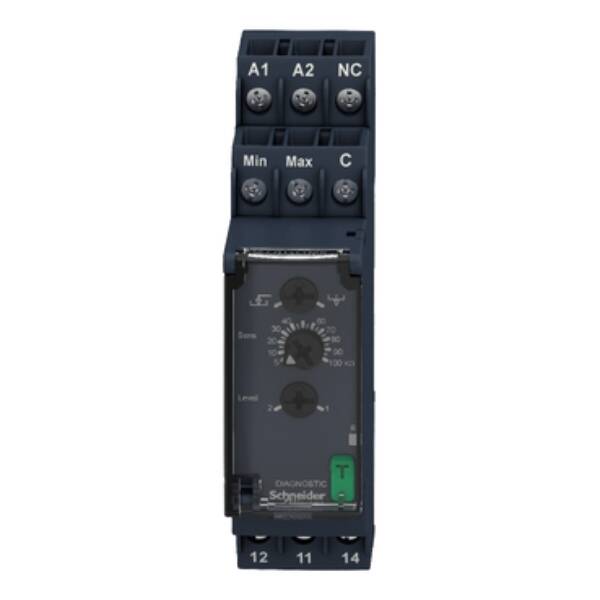

This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand

Schneider Electric

Range

Harmony Control Relays

Part No

RM22LG11MR

Weight (kg)

0.11 kg

Type

Harmony Control Relays

Width

22.5

Rated control supply voltage Us at AC 50HZ

24…240 V

Response value sensitivity adjustable

TRUE

Rated control supply voltage Us at AC 60HZ

24…240 V

Cascadable

FALSE

Type of electric connection

Screw connection

Physical measurement principle

Conductive

Number of inputs for electrodes

3

Depth

73

Number of contacts as change-over contact

1

Voltage type for actuating

AC/DC

Rated control supply voltage Us at DC

24…240 V

Height

90

With detachable clamps

FALSE

Number of contacts as normally closed contact

1
