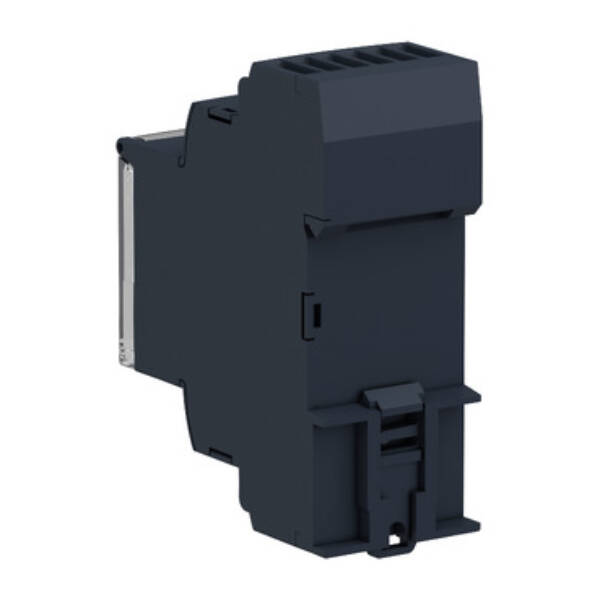

"This Harmony RM35-LV relay allows monitoring of level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device." "It also offers a sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Brand

Schneider Electric

Range

Harmony Control Relays

Part No

RM35LV14MW

Weight (kg)

0.13 kg

Type

Harmony Control Relays

Width

35

Rated control supply voltage Us at AC 50HZ

24…240 V

Response value sensitivity adjustable

TRUE

Rated control supply voltage Us at AC 60HZ

24…240 V

Cascadable

FALSE

Type of electric connection

Screw connection

Physical measurement principle

Float

Number of inputs for electrodes

3

Depth

72

Number of contacts as change-over contact

1

Voltage type for actuating

AC/DC

Rated control supply voltage Us at DC

24…240 V

Height

90

With detachable clamps

FALSE

Max. permitted operate delay time

0.5

Min. adjustable operate delay time

0.1

Max. permitted off-delay time

5

Min. adjustable off-delay time

0.1
