NSYSDC63

Modular console for Spacial SD Compact control desk with rear panel - W600xD300 - Schneider Electric - NSYSDC63

Enclosures

~~List Price £878.54 +VAT~~

Our Price £658.91 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

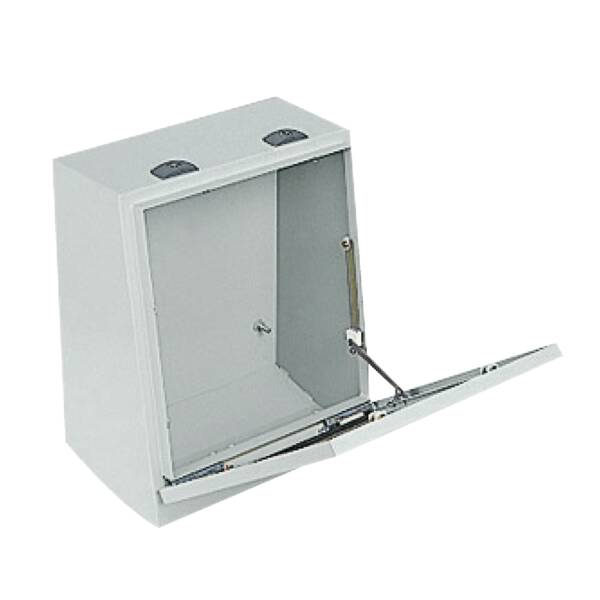

"Hinged modular console cover made from 1,5mm thick grey sheet steel (RAL 7035) for PanelSeT SD" "The console is equipped with a pneumatic opening stay with 75 ° opening angle" The width is 600mm The height is 484mm The nominal depth is 300mm and real depth is 361mm Fixed on top of control desk Locking by 2 points lock, 3mm double-bar Anti-corrosion protection is ensured by epoxy-polyester powder coating The kit is made up of 1 door, 1 body, 1 retainer, 1 rear panel, 4 step slides and 2 locks Ingress protection rating is IP55 conforming to IEC 60529 Mechanical protection rating is IK10 conforming to IEC 62262 "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand: Schneider Electric
Range: PanelSeT SD
Part No: NSYSDC63
Weight (kg): 22.00 kg
Type: Spacial SD
