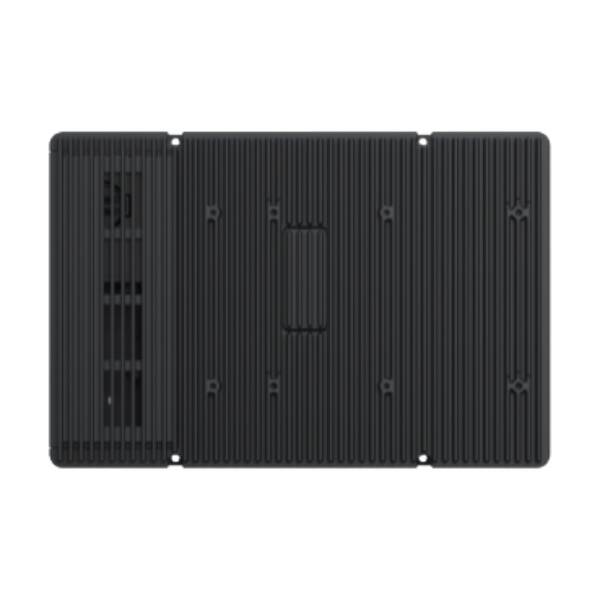

This Advacned industrial box PC (fanless or with fan for HDD) belongs to the Schneider Electric's HMI Harmony P6 range. This HMIP6 Box runs on Windows 10 operating system with an input supply voltage of 24Vdc or 100Vac to 240Vac. It is available as Configured-To-Order in the online product selector tool. The Box processor is Intel Core i7-8665UE with 4 cores 8 threads, and 8GB to 32GB DDR4 RAM. The available expansion slots are 1x PCI + 1x PCIe, 2x PCIe or 2x PCI, and storage slots are 1x M.2 SSD SATA, 2x 2.5 inch SATA (HDD or SSD). The modularity of Advanced Box facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. This Box PC comes with an integrated Intel® UHD Graphics 620 unit and pre-installed TPM2.0 module. It has Type A (2x USB 2.0 + 2x USB 3.0) and Type C (1x USB 3.0) USB ports, 1x COM RS-232C serial port, 2x RJ45 Ethernet, and 1x Display port. The associated software are EcoStruxure Machine SCADA Expert, EcoStruxure Augmented Operator Advisor, and Node-RED. The EcoStruxture Secure Connect Advisor, Secure password boot, and McAfee allowlist provide end-to-end cybersecurity. Its dimensions are 290mm (width) x 195mm (height) x 65mm (depth) and weighs 3.50Kg. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. This range also includes the Harmony DM6 displays which combined with Advacned Box PC makes a Panel PC. It can be Wall, Book, or Flat mounted. Harmony P6 PC's smart design and engineering shortens implementation time for automation engineers and is more economical throughout the life cycle with optimized design and ease of maintenance. The Harmony P6 online Product Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.

Brand

Schneider Electric

Range

Harmony P6

Part No

HMIP67BCTO

Weight (kg)

4.50 kg

Type

Harmony P6
