Brand
-
Schneider Electric
-
Range
-
Harmony Control Relays
-
Part No
-

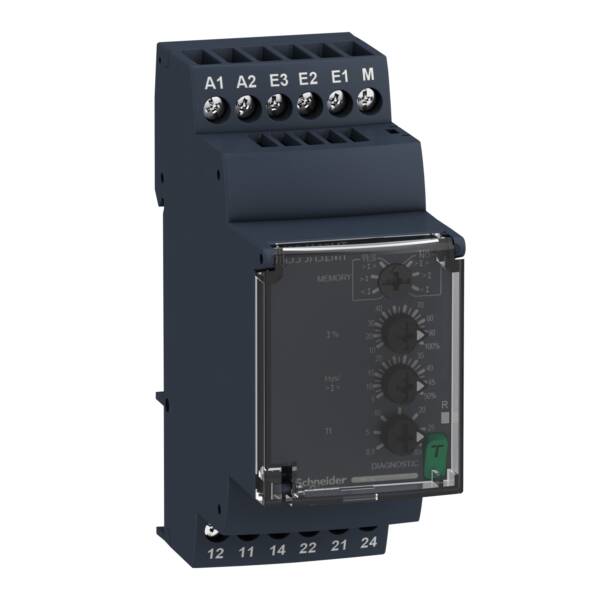

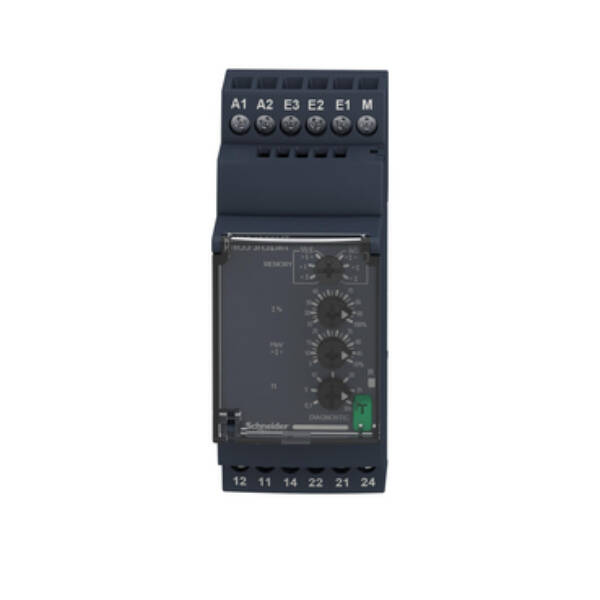

RM35JA32MT
-
Weight (kg)
-
0.13 kg
-
Type
-
Harmony Control Relays
-
Three-phase over current possible
-
FALSE
-
Contains function DC-voltage under current
-
TRUE
-
Three-phase under current possible
-
FALSE
-
Current measurement range
-
0.15…15 A
-
Single-phase over current possible
-
TRUE
-
External current transformer
-
FALSE
-
Type of electric connection
-
Screw connection
-
Single-phase under current possible
-
TRUE
-
Height
-
90
-
Voltage type for actuating
-
AC
-
Single-phase hysteresis possible
-
TRUE
-
Max. permitted delay-on energization time
-
0.3
-
Three-phase hysteresis possible
-
FALSE
-
Width
-
35
-
Rated control supply voltage Us at AC 50HZ
-
380…415 V
-
Rated control supply voltage Us at AC 60HZ
-
380…415 V
-
Function DC-current hysteresis
-
TRUE
-
Contains function DC-voltage over current
-
TRUE
-
Depth
-
73
-
Number of contacts as normally open contact
-
2
-
Number of contacts as change-over contact
-
2
-
Rated control supply voltage Us at DC
-
380…415 V
-
With detachable clamps
-
FALSE
-
Number of contacts as normally closed contact
-
2
-
Min. adjustable delay-on energization time
-
0.1
-
Max. permitted off-delay time
-
30
-
Min. adjustable off-delay time
-
0.1
