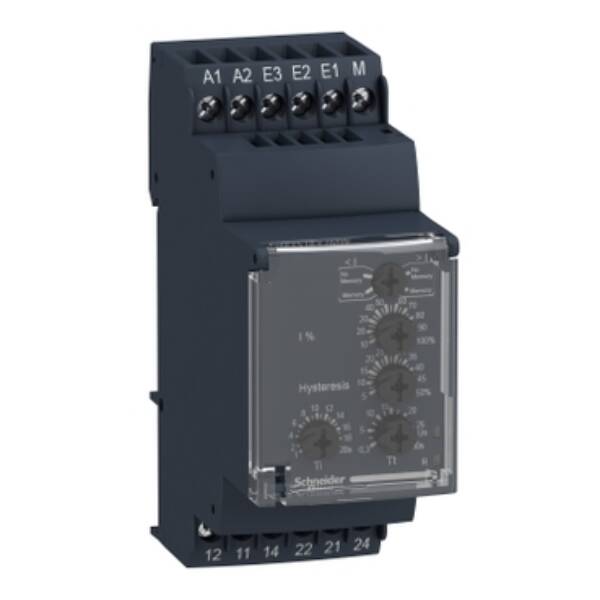

Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC - Schneider Electric - RM35JA32MW
Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC - Schneider Electric - RM35JA32MW

RM35JA32MW

Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC - Schneider Electric - RM35JA32MW

Control

List Price £148.13 +VAT

Our Price £111.10 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Brand
Schneider Electric
Range
Harmony Control Relays
Part No
RM35JA32MW
Weight (kg)
0.15 kg
Type
Harmony Control Relays
Three-phase over current possible
TRUE
Contains function DC-voltage under current
FALSE
Three-phase under current possible
TRUE
Current measurement range
0.15…15 A
Single-phase over current possible
FALSE
External current transformer
FALSE
Type of electric connection
Other
Single-phase under current possible
FALSE
Voltage type for actuating
AC/DC
Height
90
Single-phase hysteresis possible
FALSE
Max. permitted delay-on energization time
20
Three-phase hysteresis possible
FALSE
Width
35
Rated control supply voltage Us at AC 50HZ
24…240 V
Rated control supply voltage Us at AC 60HZ
24…240 V
Function DC-current hysteresis
FALSE
Contains function DC-voltage over current
FALSE
Depth
72
Number of contacts as change-over contact
2
Rated control supply voltage Us at DC
24…240 V
With detachable clamps
FALSE
Min. adjustable delay-on energization time
1
Max. permitted off-delay time
30
Min. adjustable off-delay time
0.3

Datasheet for RM35JA32MW - Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC - Schneider Electric - RM35JA32MW
