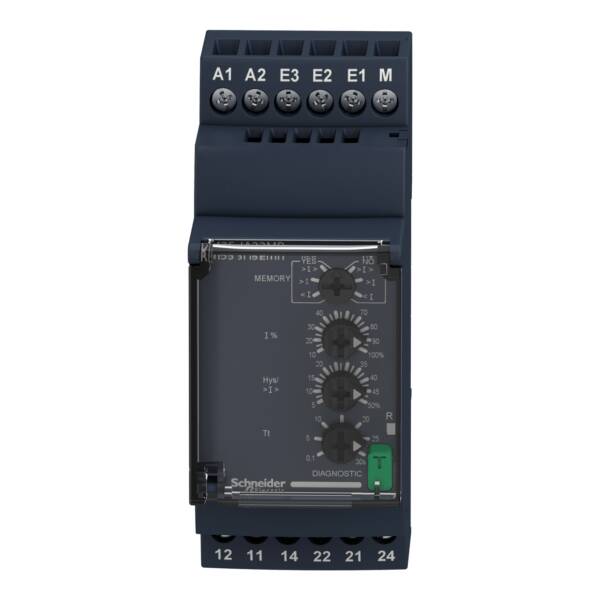

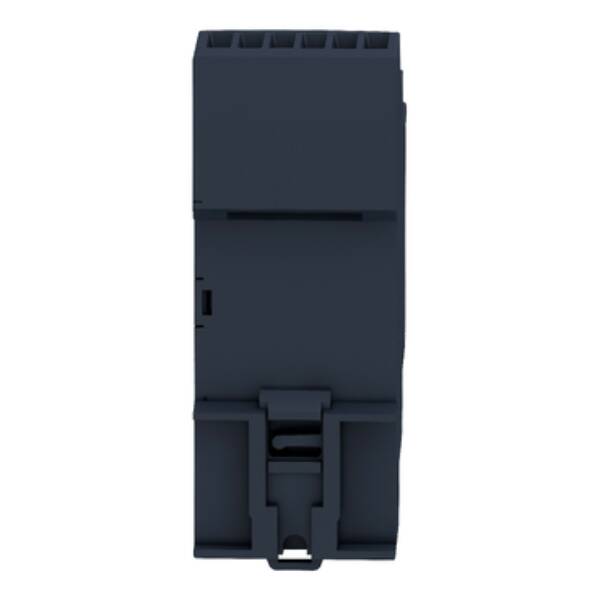

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand

Schneider Electric

Range

Harmony Control Relays

Part No

RM35JA32MR

Weight (kg)

0.14 kg

Type

Harmony Control Relays

Three-phase overcurrent possible

FALSE

Contains function DC-voltage under current

TRUE

Three-phase under current possible

FALSE

Current measuring range

0.15…15 Ampere

Single-phase overcurrent possible

TRUE

External current transformer

FALSE

Type of electric connection

Screw connection

Voltage type (supply voltage)

AC/DC

Single-phase under current possible

TRUE

Height

90

Single-phase hysteresis possible

TRUE

Three-phase hysteresis possible

FALSE

Width

35

Function DC-current hysteresis

TRUE

Contains function DC-voltage overcurrent

TRUE

Depth

73

Number of contacts as normally open contact

2

Number of contacts as change-over contact

2

Number of contacts as normally closed contact

2

With detachable clamps

FALSE

Max. permitted off-delay time

30

Min. adjustable off-delay time

0.1
