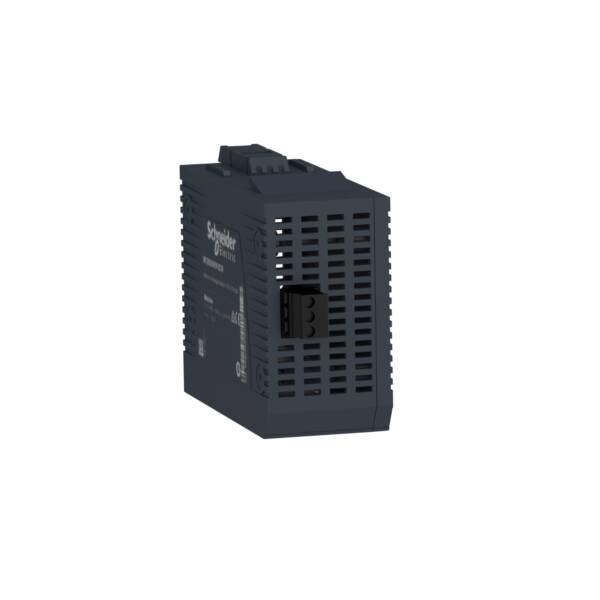

This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 6 transmission ports for copper cable and 2 port for single-mode fiber optic. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 3.8W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Dimensions are 45mm (width) x 110mm (height) x 88mm (depth)and weighs 0.235kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Brand

Schneider Electric

Range

Modicon Switch

Part No

MCSESU083F2CS0

Weight (kg)

0.38 kg

Type

Modicon Switch
