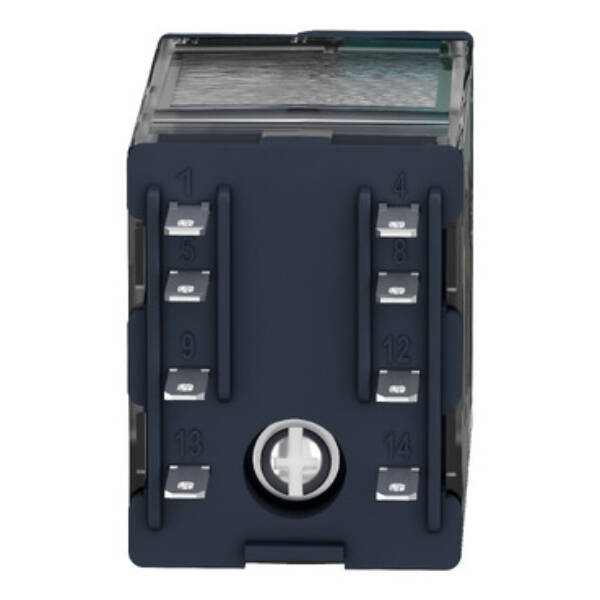

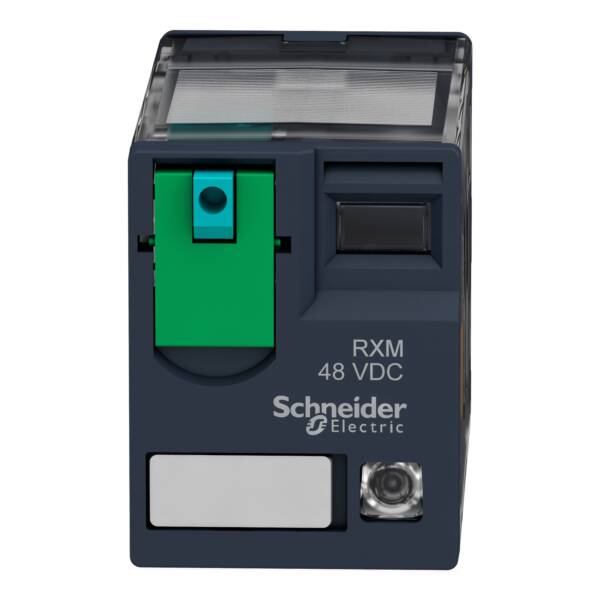

"This Harmony RXM miniature plug-in relay has a coil control voltage of 48V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0

Brand

Schneider Electric

Range

Harmony Electromechanical Relays

Part No

RXM2AB2ED

Weight (kg)

0.04 kg

Type

Harmony Electromechanical Relays

Width

21

Type of electric connection

Plug-in connection

Drive, switching attitude

Mono stable

With forced-guided contacts

TRUE

Nominal current

12

Drive, polarization

Polarity free

With LED indication

TRUE

Type of switch contact

Double contact

Depth

55

Complete with socket

FALSE

Number of contacts as change-over contact

2

Rated control supply voltage Us at DC

48 V

Voltage type for actuating

DC

Height

27

Degree of protection (IP)

IP40

With detachable clamps

TRUE
