RXM2AB2P7
RXM2AB2P7

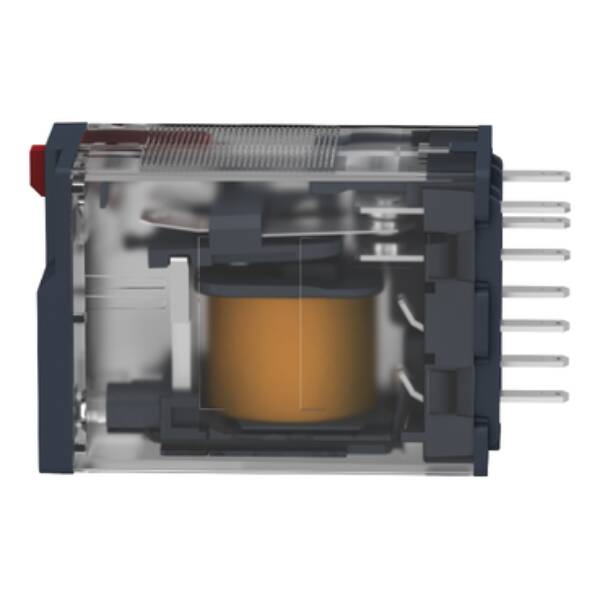

Miniature plug-in relay, 12 A, 2 CO, LED, 230 V AC - Schneider Electric - RXM2AB2P7
Control
List Price £7.59
+VAT
Our Price £5.69
+VAT
SAVE 26% OFF List Price
Add to basket
Fast Track Delivery Product
Get in touch
Product description
Specifications
Downloads

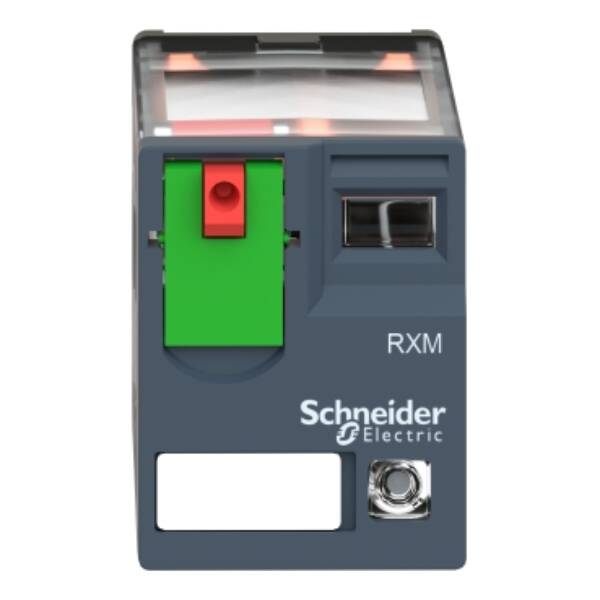

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RXM2AB2P7
Weight (kg)
0.04 kg
Type
Harmony Electromechanical Relays
Width
21
Rated control supply voltage Us at AC 50HZ
230 V
Rated control supply voltage Us at AC 60HZ
230 V
Type of electric connection
Plug-in connection
Drive, switching attitude
Mono stable
With forced-guided contacts
FALSE
Nominal current
12
With LED indication
TRUE
Drive, polarization
Polarity free
Depth
55
Type of switch contact
Other
Complete with socket
FALSE
Number of contacts as change-over contact
2
Voltage type for actuating
AC
Height
27
Degree of protection (IP)
IP40
With detachable clamps
FALSE
Datasheet for RXM2AB2P7 - Miniature plug-in relay, 12 A, 2 CO, LED, 230 V AC - Schneider Electric - RXM2AB2P7
Download
