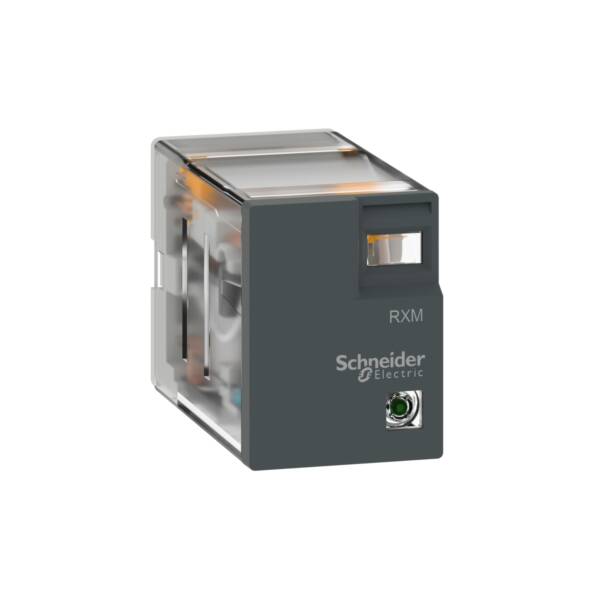

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 5A, control circuit voltage of 24 V DC. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a RXZE socket RXZE1M2C. To protect against vibrations, metal clamp RXZ410/RXZ420 can be added to the socket. It is sold in lots of 10 and reference includes relay only. The RXMLB plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (5A), 4 CO (3A) contacts.

Brand

Schneider Electric

Range

Harmony Electromechanical Relays

Part No

RXM2LB1BD

Weight (kg)

0.04 kg

Type

Harmony Electromechanical Relays

Width

21

Type of electric connection

Other

Drive, switching attitude

Mono stable

With forced-guided contacts

TRUE

Nominal current

5

With LED indication

FALSE

Drive, polarization

Polarity free

Depth

46

Type of switch contact

Other

Complete with socket

FALSE

Number of contacts as change-over contact

2

Voltage type for actuating

DC

Height

27

Rated control supply voltage Us at DC

24 V

Degree of protection (IP)

IP40

With detachable clamps

TRUE
