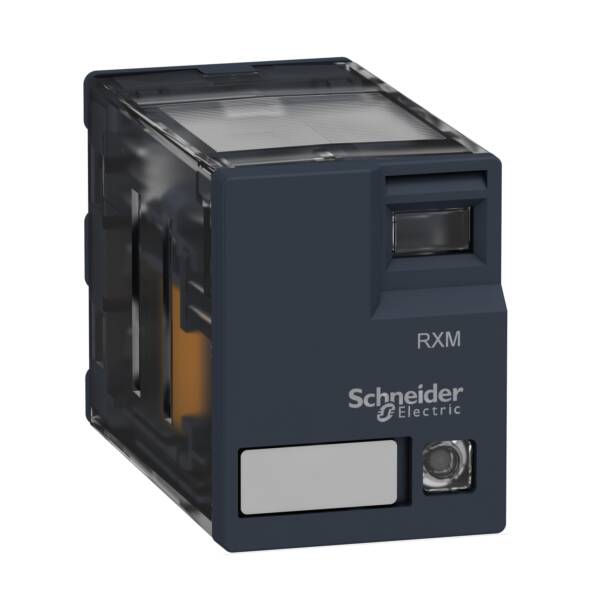

This product is part of the Harmony Electromechanical Relays range, an offer of interface, miniature and power electromechanical relays. The miniature plug-in relay has 4 changeover contact with 6A at 250V AC and 6A at 28V DC resistive load current. It is a miniature relay with a control circuit voltage of 120V AC at 50/60Hz. This plug-in relay comes with status LED and flat plug-in pin. It offers electrical durability of about 1,00,000 cycles for resistive load and mechanical durability of about 10 million cycles. A green LED on the front will illuminate when the relay is on. Its dimensions are 21mm (width) x 27mm (height) x 40mm (depth). It weighs 0.037kg. It is suitable for industrial, automation and control applications. This product is certified by Lloyd's, GOST, CSA, CE and UL. It meets UL 508, CSA C22.2 No 14 and EN/IEC 61810-1 standards. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.

Brand

Schneider Electric

Range

Harmony Electromechanical Relays

Part No

RXM4AB3F7

Weight (kg)

0.03 kg

Type

Harmony Electromechanical Relays
