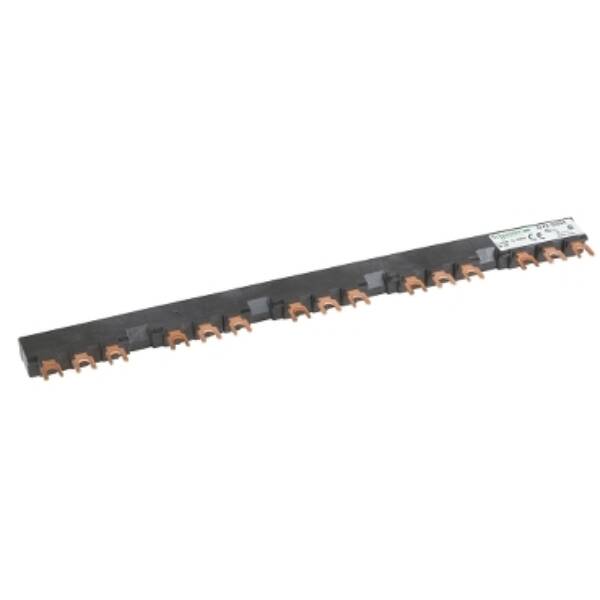

Linergy FT - Comb busbar - 63 A - 5 tap-offs - 54 mm pitch - Schneider Electric - GV2G554

Linergy FT - Comb busbar - 63 A - 5 tap-offs - 54 mm pitch - Schneider Electric - GV2G554

GV2G554

Linergy FT - Comb busbar - 63 A - 5 tap-offs - 54 mm pitch - Schneider Electric - GV2G554

Control

~~List Price £26.53 +VAT~~

Our Price £19.90 +VAT

SAVE 25% OFF List Price

Fast Track Delivery Product

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 5 tap-off outlets for the paralleling of 5 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: GV2G554
Weight (kg): 0.11 kg
Type: TeSys Deca contactors
Length: 270
Insulated: TRUE
Number of phases: 3
Type of electric connection: Fork
Number of modular spacings: 30
Rated surge voltage: 6
Rated permanent current Iu: 63
Conditioned rated short-circuit current Iq: 11
Suitable for devices with auxiliary switch: FALSE
Suitable for devices with N-busbar: FALSE
Pitch dimensions: 54
Number of poles: 3
Max. rated operation voltage Ue: 690
Suitable for number of devices: 5

Datasheet for GV2G554 - Linergy FT - Comb busbar - 63 A - 5 tap-offs - 54 mm pitch - Schneider Electric - GV2G554

Download
