Linergy FT - Comb busbar - 63 A - 4 tap-offs - 72 mm pitch - Schneider Electric - GV2G472

Linergy FT - Comb busbar - 63 A - 4 tap-offs - 72 mm pitch - Schneider Electric - GV2G472

GV2G472

Linergy FT - Comb busbar - 63 A - 4 tap-offs - 72 mm pitch - Schneider Electric - GV2G472

Control

~~List Price £21.71 +VAT~~

Our Price £16.28 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

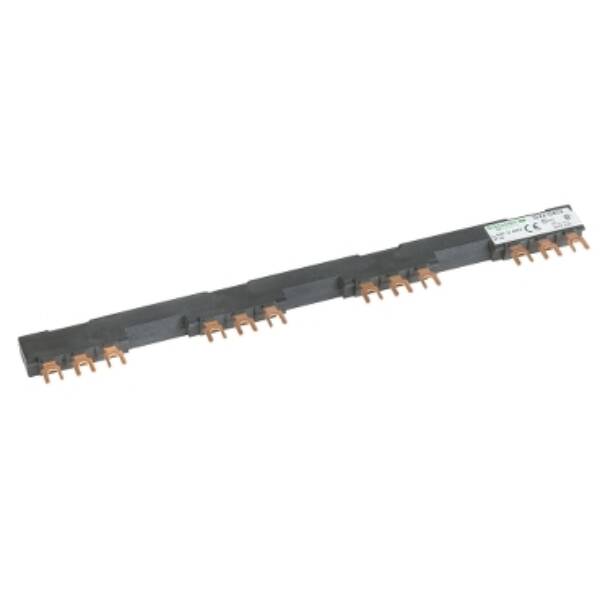

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 2 devices with a pitch of 72mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: GV2G472
Weight (kg): 0.11 kg
Type: TeSys Deca contactors
Colour: Black
Length: 288
Insulated: TRUE
Can be cut to size: FALSE
Type of electric connection: Fork
Number of phases: 3
Width in number of modular spacings: 72
Rated surge voltage: 6
Rated permanent current Iu: 63
Conditioned rated short-circuit current Iq: 11
Suitable for devices with auxiliary switch: FALSE
Suitable for devices with N-conductor: FALSE
Module width: 72
Number of poles: 3
Max. rated operation voltage Ue: 690
Suitable for number of devices: 4

Datasheet for GV2G472 - Linergy FT - Comb busbar - 63 A - 4 tap-offs - 72 mm pitch - Schneider Electric - GV2G472
