line choke for Altistart 48 - 0.17 mH - 150 A - IP00 - Schneider Electric - VZ1L150U170T

line choke for Altistart 48 - 0.17 mH - 150 A - IP00 - Schneider Electric - VZ1L150U170T

VZ1L150U170T

line choke for Altistart 48 - 0.17 mH - 150 A - IP00 - Schneider Electric - VZ1L150U170T

Automation

~~List Price £662.59 +VAT~~

Our Price £496.94 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

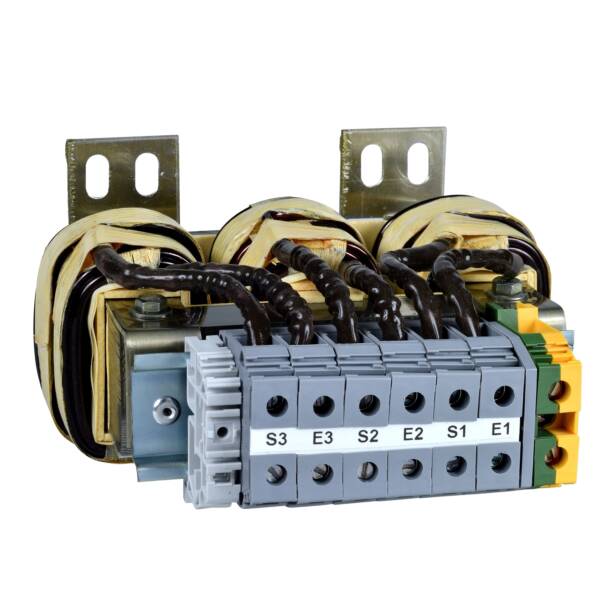

This line choke is an option of soft start / soft stop Altistart 48 range. Its rated current is equal to 150A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the soft starter. Its protection index is IP00. It has an inductance value of 0.17mH. It weighs 14.9kg. Its use is recommended in particular when installing several electronic starters on the same line supply.

Brand: Schneider Electric
Range: Altistart 48
Part No: VZ1L150U170T
Weight (kg): 18.70 kg
Type: Altistart 48
Number of poles, primary side: 3
Suitable as output reactance coil: FALSE
Suitable as commutation reactance coil: FALSE
Rated operation frequency: 50…60 Hz
Suitable as net reactance coil: TRUE
Max. rated operation voltage Ue: 480
Rated current at AC: 150 A
Suitable as interference suppression reactance coil: FALSE
Degree of protection (IP): IP00
Suitable as ripple filter choke: FALSE
Rated inductance: 0.17

Datasheet for VZ1L150U170T - line choke for Altistart 48 - 0.17 mH - 150 A - IP00 - Schneider Electric - VZ1L150U170T

Download
