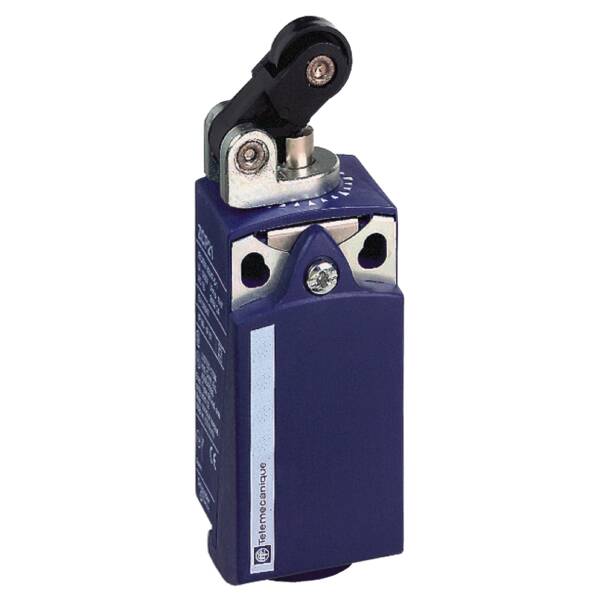

This product is part of the XC Standard limit switch range. This XCKP standard format (CENELEC EN 50047) limit switch has a metal end plunger with a plastic roller lever and a plastic body. The limit switch is a device that converts a mechanical motion into an electrical control signal. This limit switch has a plastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It has one normally closed and one normally open with Form Zb, snap action contacts. It has a rated operational current of 3A at 240VAC (A300) (AC-15), 0.27A at 250VDC (Q300) (DC13). Its mechanical durability is 15 million operating cycles and electrical durability is 5 million operating cycles. It has a metal end plunger with a plastic roller lever that supports lateral approach, one direction. It is furnished with screw clamp terminals for electrical connection. Limit switch has one entry tapped for 1/2in NPT cable gland. It is compliant with UL, CSA, CCC, and EN/IEC standards and is IP66 and IP67 rated. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.

Brand

Telemecanique Sensors

Range

OsiSense XC standard Limit Switches

Part No

XCKP2121N12

Weight (kg)

0.11 kg

Type

OsiSense XC standard Limit Switches
