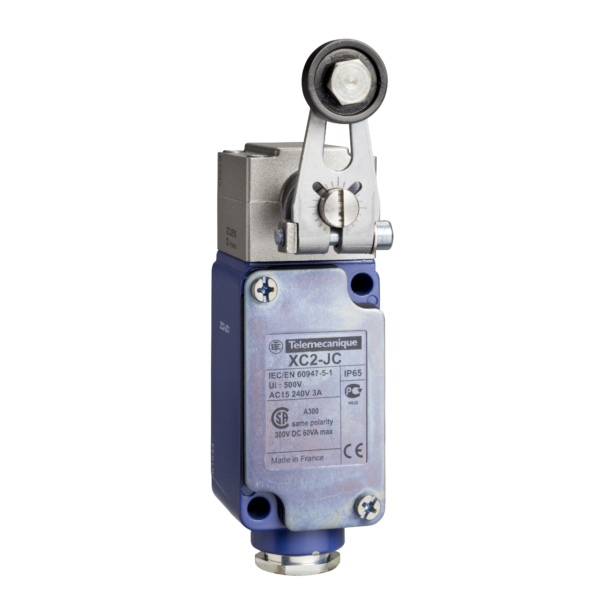

This product is part of the XC Special range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 change over, snap action contacts without positive opening operation and provides switch actuation by 30° cam. It has a lateral approach in 2 directions. The movement of limit switch operating head is rotary. It is furnished with screw clamp terminals for electrical connection and 1 entry incorporating cable gland. It is an IP65, IP67 and IK08 rated product. It has a rated operational current of 3A at 240V AC, 0.27A at 250V AC and a conventional enclosed thermal current of 10A. Its mechanical durability is 30 million operating cycles and electrical durability is 5 million operating cycles. This limit switch has a fixed type body which is made of metal. Its dimensions are 40mm (Width) x 65mm (Depth) x 143mm to 183mm (Height) and weighs 0.62kg. It is suitable for severe applications. This product is certified by CSA, NEMKO and DEMKO. It meets EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, VDE 0660-200 and IEC 60337-1 standards. Special format limit switches for severe environments.

Brand

Telemecanique Sensors

Range

OsiSense XC Special format Limit Switches

Part No

XC2JC10111

Weight (kg)

0.62 kg

Type

OsiSense XC Special format Limit Switches
