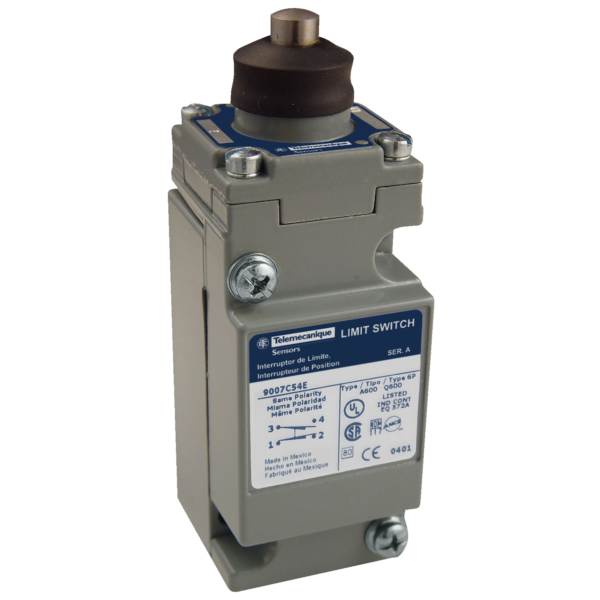

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 NC and NO, double pole double throw, double break, form ZZ, snap action contacts. It provides switch actuation on one end. The limit switch has a spring return stainless steel plunger, supports vertical approach in 1 direction. The movement of operating head is linear. It is a limit switch with a rated voltage of 600V AC and rated operating current of 10A. It is furnished with screw clamp terminals for electrical connection. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. This linear head limit switch has a plug-in body, made of zinc. Its dimensions are 39.37mm (width) x 45.47mm (depth) x 114.30mm (height). It weighs 0.57kg. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Brand

Telemecanique Sensors

Range

Nema Limit Switches

Part No

9007C62E

Weight (kg)

0.50 kg

Type

Nema Limit Switches
