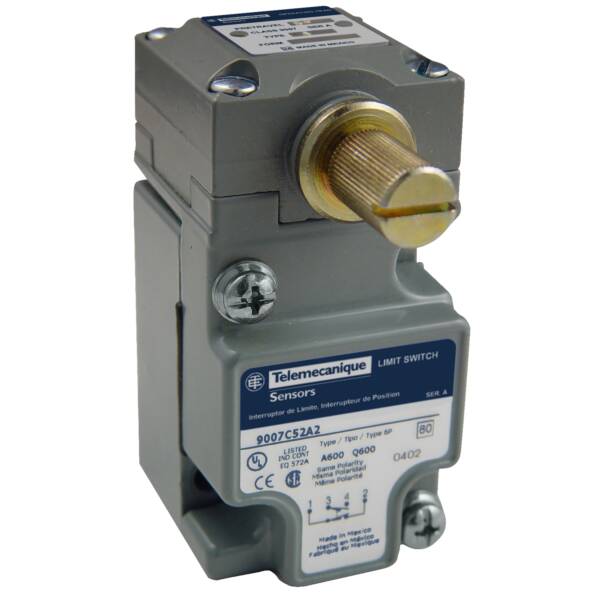

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, single pole double throw, double break, form Z, snap action contacts. It provides switch actuation of CCW to CW. The limit switch has a spring return without operating lever and supports the lateral approach in 2 programmable directions. The movement of operating head is rotary. It is a limit switch with a rated voltage of 600V AC and rated operating current of 10A. It is furnished with screw clamp terminals for electrical connection. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. This rotary head limit switch has a plug-in body, made of zinc. Its dimensions are 39.37mm (width) x 63.5mm (depth) x 79.76mm (height). It weighs 0.57kg. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Brand

Telemecanique Sensors

Range

Nema Limit Switches

Part No

9007C52N2

Weight (kg)

0.49 kg

Type

Nema Limit Switches
