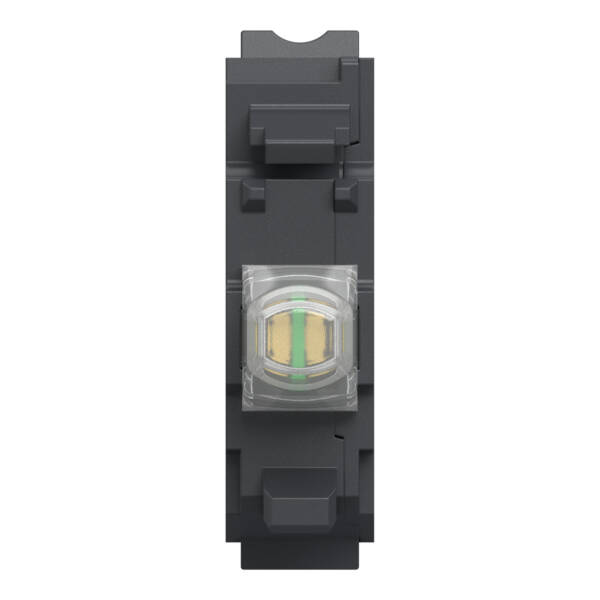

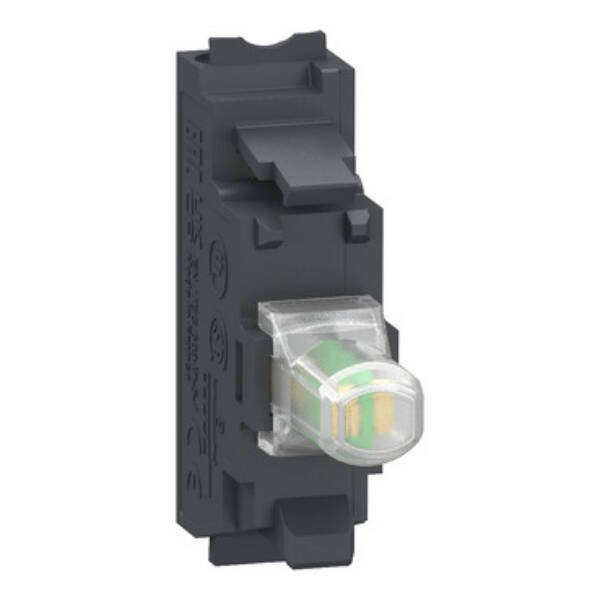

This Harmony white compact light block operates with a universal LED. It is supplied with 12V AC/DC and uses push-in terminal connections. It has a plastic body. It is compatible with Harmony XB4 and Harmony XB5 units. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip-together assembly and connected with simple push-in terminal connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This light block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Brand

Schneider Electric

Range

Harmony XB4

Part No

ZBVJ15

Weight (kg)

0.01 kg

Type

Harmony XB4

With light source

TRUE

Type of fastening

Other

With integrated voltage decreasing resistor

FALSE

Connection type auxiliary circuit

Other

Lamp type

LED

Rated voltage Ue at AC 50 Hz

12 Volt

Lamp holder

Other

With integrated diode

TRUE

Colour light source

White

Transformer integrated

FALSE

Rated voltage Ue at DC

12 Volt

Voltage type for actuating

AC/DC

Rated voltage Ue at AC 60 Hz

12 Volt
