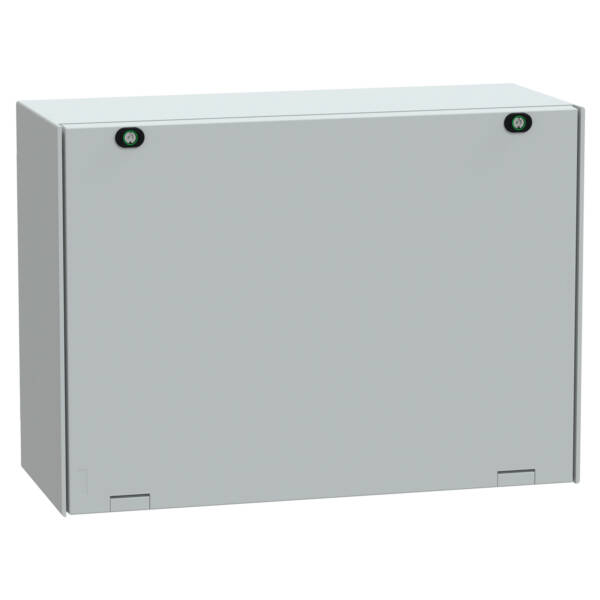

This PanelSeT PLM landscape (formerly Thalassa PLM) enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). It is composed of body, door, lock. Featuring a removable door by cut hinges. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The dimensions are (W) 747 mm x (H) 536 mm x (D) 300 mm. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is suitable to build array combiner boxes. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified. Environmental compliant

Brand

Schneider Electric

Range

PanelSeT PLM GRP Enclosures

Part No

NSYPLM57G

Weight (kg)

0.01 kg

Type

Thalassa PLM GRP Enclosures

With mounting plate

FALSE

With glazed door

FALSE

Wall fastening possible

TRUE

Suitable for metrical mounting

TRUE

RAL-number

7035

Tackable

TRUE

Height

536

Degree of protection (IP)

IP66

Pitched roof

FALSE

Colour

Grey

Width

747

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Suitable for outdoor set-up

TRUE

Number of locks

2

Material quality

Polyester

Wall build in

TRUE

Depth

300

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

Pole fastening

TRUE

With backside door

FALSE

Floor installation possible

FALSE
