NSYFCG80

"L-rail for fixing cables, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel, W800mm" - Schneider Electric - NSYFCG80

Enclosures

~~List Price £56.53 +VAT~~

Our Price £42.40 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

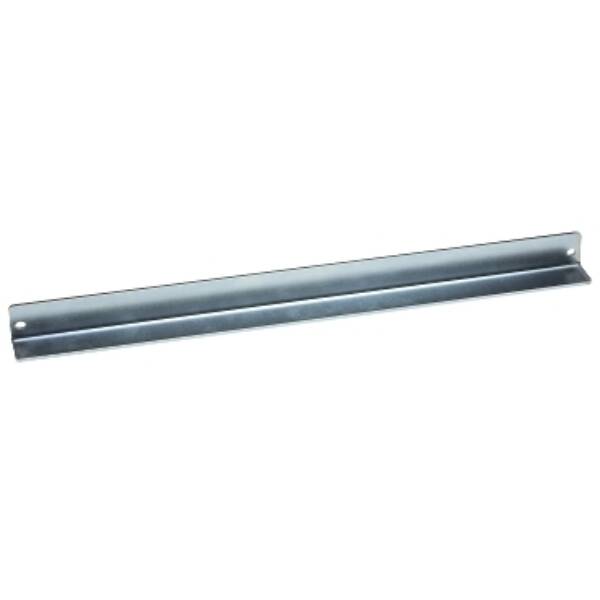

"This is a L-rail for fixing cables. It is made of zinc coated steel for use in PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures." "The nominal width is 800mm and the fixing center-to-center distance is 750mm." In PanelSeT SM/SMX enclosures the rail is fixed to the bottom adjustment rails, above the cable entry, or else to the plinth, using the plinth cross-rails. The cables are fixed to the rail by means of metal clamps. Adjustable depth with a pitch of 25mm. It is not possible to mount it on a plinth cross-rail. The kit contains fixing elements, 1 rail and 2 mounting supports. "This product is qualified as a green premium, with minimal use of hazardous substances."

Brand: Schneider Electric
Range: PanelSeT SM
Part No: NSYFCG80
Weight (kg): 1.91 kg
Type: Spacial SM
Surface protection: Other
Length: 800
Height: 40
Material thickness: 4
Material: Steel
Drill hole distance centrically: 750
Punch shape: None
