NSYFCG100
NSYFCG100

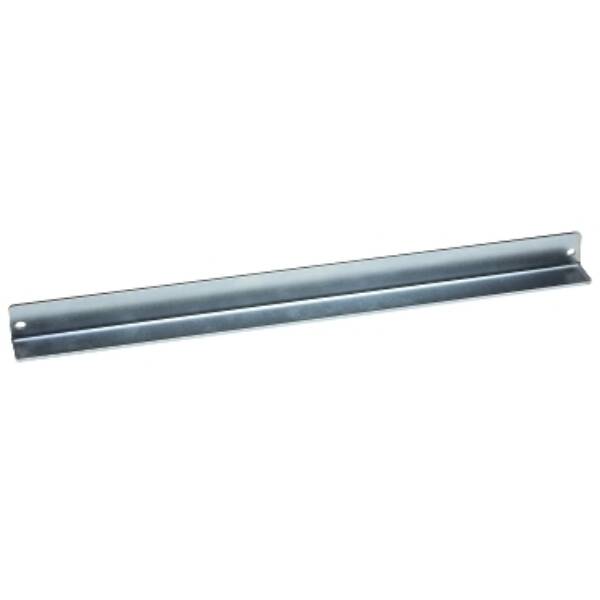

"L-rail for fixing cables, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel, W1000mm" - Schneider Electric - NSYFCG100
Enclosures
List Price £61.83
+VAT
Our Price £46.37
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
"This is a L-rail for fixing cables. It is made of zinc coated steel for use in PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures." "The nominal width is 1000mm and the fixing center-to-center distance is 950mm." In PanelSeT SFN and PanelSeT SF/SFX enclosures the rail is fixed to the bottom frame, above the cable entry, or else to the plinth, using the plinth cross-rails. In PanelSeT SM/SMX enclosures the rail is fixed to the bottom adjustment rails, above the cable entry, or else to the plinth, using the plinth cross-rails. The cables are fixed to the rail by means of metal clamps. Adjustable depth with a pitch of 25mm. It is not possible to mount it on a plinth cross-rail. The kit contains fixing elements, 1 rail and 2 mounting supports. "This product is qualified as a green premium, with minimal use of hazardous substances."
Brand
Schneider Electric
Range
PanelSeT SM
Part No
NSYFCG100
Weight (kg)
2.39 kg
Type
Spacial SM
Length
1000
Surface protection
Other
Height
40
Material thickness
4
Material
Steel
Drill hole distance centrically
950
Punch shape
None
Datasheet for NSYFCG100 - "L-rail for fixing cables, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel, W1000mm" - Schneider Electric - NSYFCG100
Download
