joystick controller head Ø22 2-direction spring return - Schneider Electric - ZD4PA22

joystick controller head Ø22 2-direction spring return - Schneider Electric - ZD4PA22

ZD4PA22

joystick controller head Ø22 2-direction spring return - Schneider Electric - ZD4PA22

Control

~~List Price £64.77 +VAT~~

Our Price £48.58 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

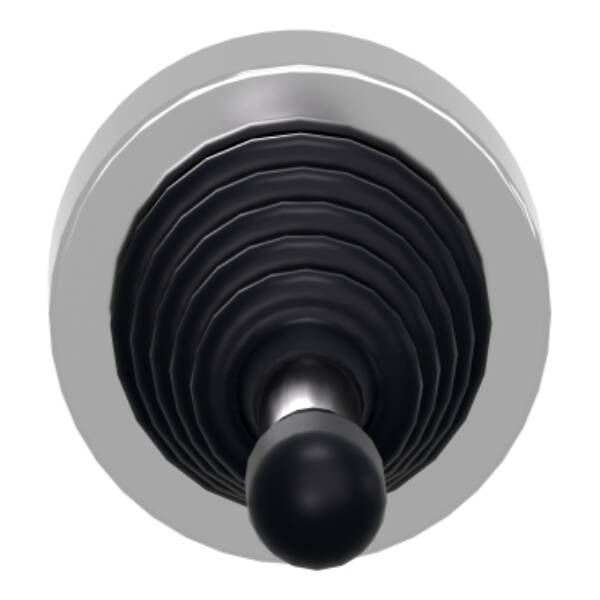

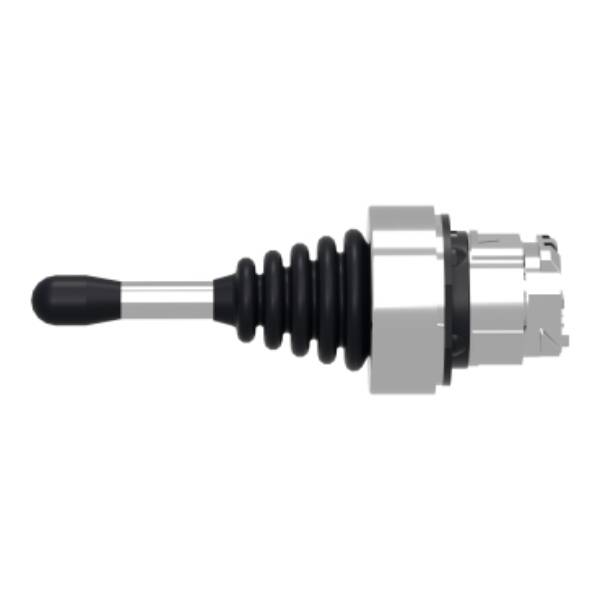

This Harmony XB4 head for joystick controller operates with 2 direction spring-return-to-zero-position mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric
Range: Harmony XB4
Part No: ZD4PA22
Weight (kg): 0.06 kg
Type: Harmony XB4
With retraction in 0-position: TRUE
Rated operation current Ie at AC-21, 400 V: 10
Number of normally open contacts per actuation direction: 4
Colour front ring: Chrome
Coder: FALSE
Analogue output signal configurable: FALSE
Joy stick length: 54
Material front ring: Metal
Centre mounting, hole diameter: 22.5
Number of actuation directions: 2
Locking in 0-position: FALSE
With front ring: TRUE
Degree of protection (IP): IP66
Degree of protection (NEMA): Other

Datasheet for ZD4PA22 - joystick controller head Ø22 2-direction spring return - Schneider Electric - ZD4PA22

Download
