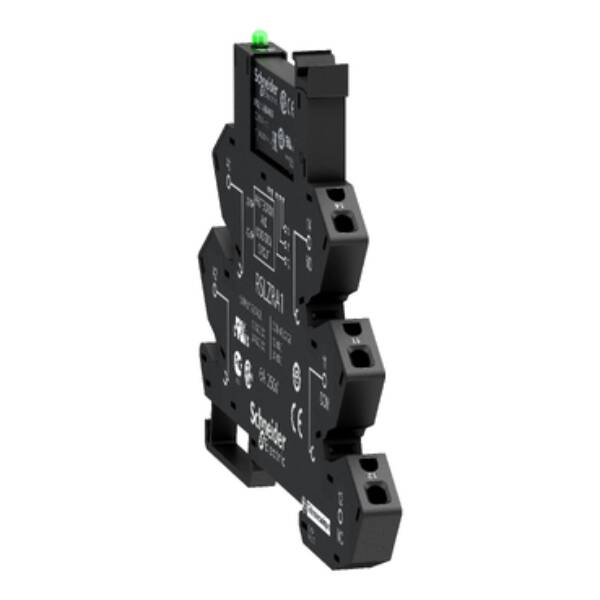

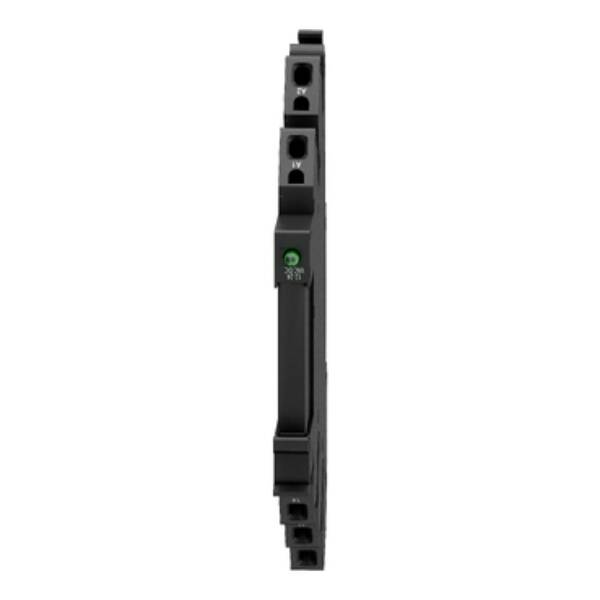

Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC - Schneider Electric - RSL1PRBU

Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC - Schneider Electric - RSL1PRBU

RSL1PRBU

Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC - Schneider Electric - RSL1PRBU

Control

~~List Price £22.23 +VAT~~

Our Price £16.67 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Electromechanical Relays
Part No: RSL1PRBU
Weight (kg): 0.03 kg
Type: Harmony Electromechanical Relays
Width: 6.2
Rated control supply voltage Us at AC 50HZ: 24
craft\elements\db\ElementQuery: 24
craft\elements\db\ElementQuery: Spring clamp connection
Drive, switching attitude: Mono stable
With forced-guided contacts: TRUE
craft\elements\db\ElementQuery: 6
Drive, polarization: Polarity free
craft\elements\db\ElementQuery: TRUE
Type of switch contact: Simple contact
Depth: 101
Complete with socket: TRUE
craft\elements\db\ElementQuery: 1
craft\elements\db\ElementQuery: DC
Rated control supply voltage Us at DC: 24 V
Height: 78.6
Degree of protection (IP): IP40
craft\elements\db\ElementQuery: TRUE

Datasheet for RSL1PRBU - Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC - Schneider Electric - RSL1PRBU

Download
