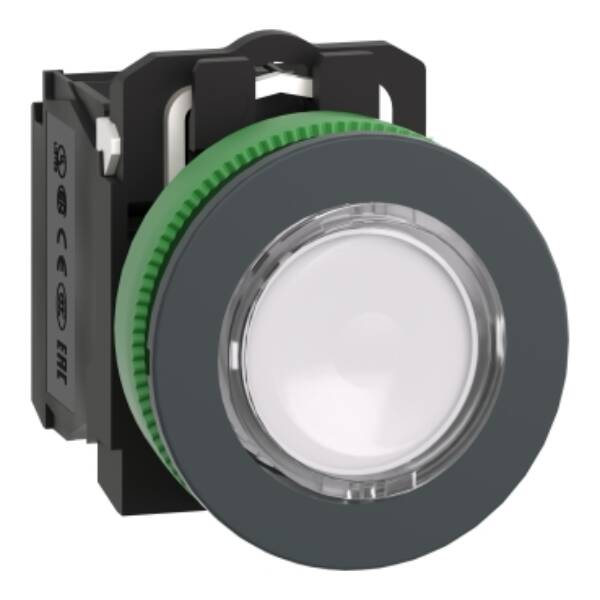

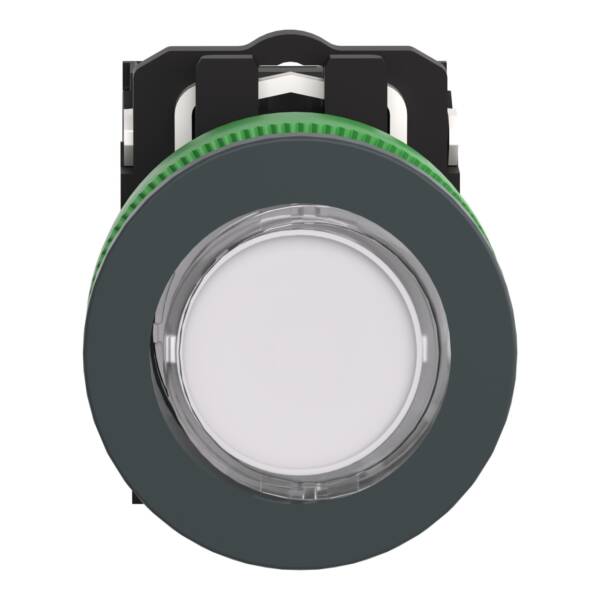

This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and white. The bezel and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. Complies with directives such as RoHS, WEEE

Brand

Schneider Electric

Range

Harmony XB5

Part No

XB5FW31G5

Weight (kg)

0.06 kg

Type

Harmony XB5

Spring-return

TRUE

Colour front ring

Black

Type of electric connection

Screw connection

Material front ring

Plastic

Supply voltage lamp

120

Hole diameter

30.5

Switching function latching

FALSE

Type of button

Flat

Number of contacts as normally open contact

1

Construction type lens

Round

Colour button

White

With front ring

FALSE

Suitable for illumination

TRUE

Degree of protection (IP)

IP66

Number of command positions

1

Number of contacts as normally closed contact

1

Degree of protection (NEMA)

4X
