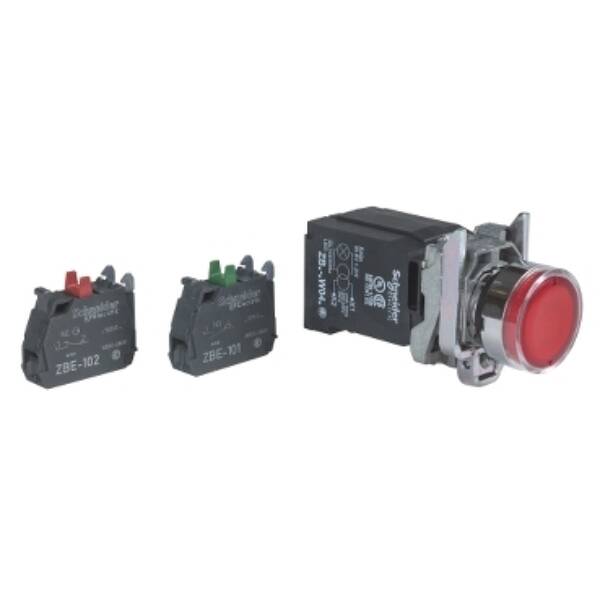

Illuminated push button, Harmony XB4, red flush complete illum pushbutton Ø22 mm spring return 1NO+1NC 110...120 V - Schneider Electric - XB4BW3435

XB4BW3435

Illuminated push button, Harmony XB4, red flush complete illum pushbutton Ø22 mm spring return 1NO+1NC 110...120 V - Schneider Electric - XB4BW3435

Control

~~List Price £48.71 +VAT~~

Our Price £36.53 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 110V to 120V AC/DC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base and LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.

Brand: Schneider Electric
Range: Harmony XB4
Part No: XB4BW3435
Weight (kg): 0.17 kg
Type: Harmony XB4
Spring-return: TRUE
Colour front ring: Chrome
Type of electric connection: Screw connection
Supply voltage lamp: 120
Hole diameter: 22.5
Material front ring: Metal
Switching function latching: FALSE
Type of button: Flat
Construction type lens: Round
Number of contacts as normally open contact: 1
Colour button: Red/green
With front ring: TRUE
Suitable for illumination: TRUE
Degree of protection (IP): IP66
Number of contacts as normally closed contact: 1
Number of command positions: 1
Degree of protection (NEMA): Other

Datasheet for XB4BW3435 - Illuminated push button, Harmony XB4, red flush complete illum pushbutton Ø22 mm spring return 1NO+1NC 110...120 V - Schneider Electric - XB4BW3435

Download
