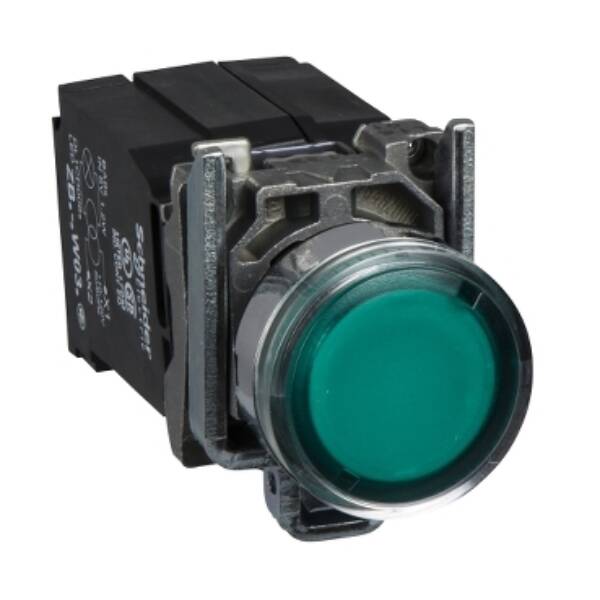

This Harmony XB4 plain lens illuminated modular green push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base and LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Brand

Schneider Electric

Range

Harmony XB4

Part No

XB4BW3345

Weight (kg)

0.18 kg

Type

Harmony XB4

Spring-return

TRUE

Colour front ring

Chrome

Type of electric connection

Screw connection

Material front ring

Metal

Hole diameter

22.5

Supply voltage lamp

240

Switching function latching

FALSE

Type of button

Flat

Number of contacts as normally open contact

1

Construction type lens

Round

Colour button

Green

With front ring

TRUE

Suitable for illumination

TRUE

Degree of protection (IP)

IP66

Number of contacts as normally closed contact

1

Number of command positions

1

Transparent

TRUE

Degree of protection (NEMA)

Other
