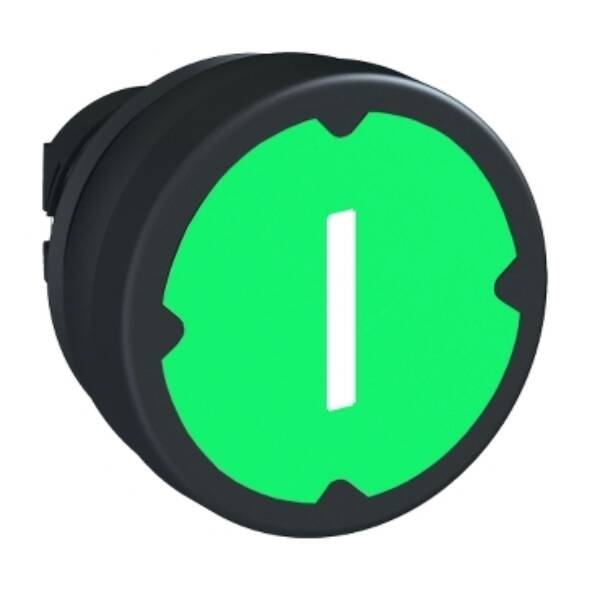

This Harmony XB5, flush green button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Brand

Schneider Electric

Range

Harmony XB5

Part No

ZB5AC38023

Weight (kg)

0.02 kg

Type

Harmony XB5

Labelled

TRUE

Spring-return

TRUE

Colour front ring

Black

With protective cover

FALSE

Hole diameter

22.5

Material front ring

Plastic

Degree of protection (IP), front side

IP66

Switching function latching

FALSE

Type of button

High

Construction type lens

Round

Colour button

Green

Degree of protection (NEMA), front side

Other

With front ring

TRUE

Suitable for illumination

FALSE

Number of command positions

1
