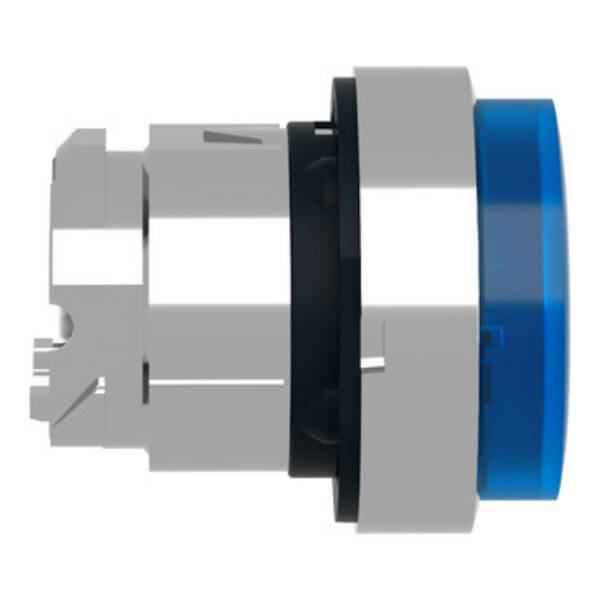

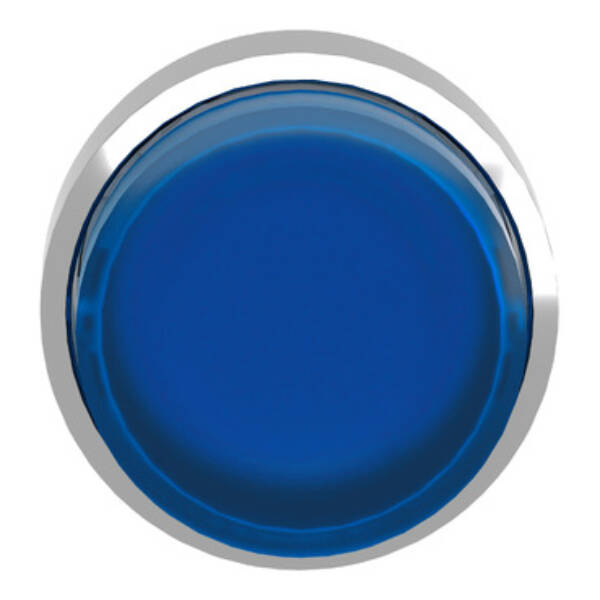

This Harmony XB4, illuminated projecting blue button head operates with latched push-push mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Brand

Schneider Electric

Range

Harmony XB4

Part No

ZB4BH63

Weight (kg)

0.03 kg

Type

Harmony XB4

Labelled

FALSE

Spring-return

FALSE

Colour front ring

Chrome

With protective cover

FALSE

Hole diameter

22.5

Material front ring

Metal

Degree of protection (IP), front side

Other

Switching function latching

TRUE

Type of button

High

Construction type lens

Round

Colour button

Blue

Degree of protection (NEMA), front side

Other

With front ring

TRUE

Suitable for illumination

TRUE

Number of command positions

1
