Brand
-
Schneider Electric
-
Range
-
Harmony XB5
-
Part No
-

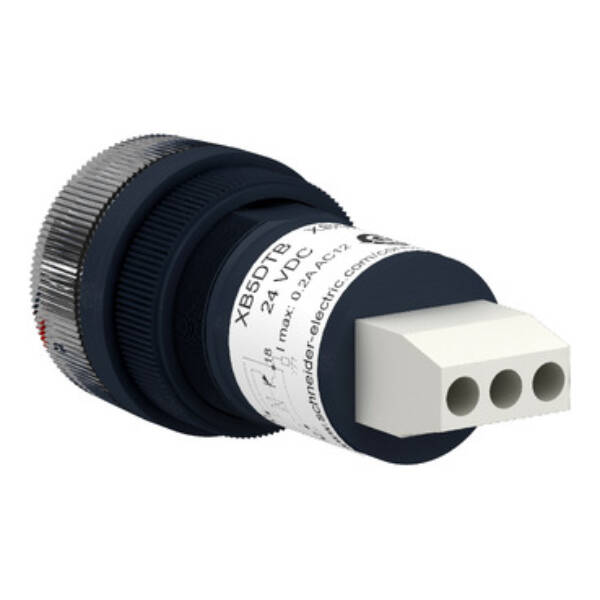

XB5DTB24
-
Weight (kg)
-
0.03 kg
-
Type
-
Harmony XB5
-
Suitable for front mounting
-
TRUE
-
Type of electric connection
-
Screw connection
-
Function delay on de-energization
-
TRUE
-
Clock function, starting with pause, variable
-
FALSE
-
Pluggable on auxiliary contact block
-
FALSE
-
Clock function, starting with pulse, variable
-
FALSE
-
Function floating contact on de-energization
-
FALSE
-
Function pulse shaping
-
FALSE
-
Material of contact surface
-
Other
-
Material of contact insert
-
Other
-
Voltage type (operating voltage)
-
DC
-
Function delay-on energization
-
TRUE
-
Voltage type for actuating
-
DC
-
Height
-
62
-
Degree of protection (IP)
-
IP65
-
With semiconductor output
-
TRUE
-
Suitable for DIN rail (top hat rail) mounting
-
FALSE
-
Width
-
29
-
Function floating contact on energization
-
FALSE
-
Nominal current
-
0.2
-
Depth
-
29
-
Max. starting current
-
10
-
Complete with socket
-
FALSE
-
Operating voltage DC
-
16.8…31.2 Volt
-
Outputs, reversible delayed/undelayed
-
FALSE
-
Function star-delta
-
FALSE
-
Material contact
-
Other
-
Function flashing, starting with pause, fixed time
-
TRUE
-
Rated control supply voltage DC
-
24 Volt
-
Function flashing, starting with pulse, fixed time
-
FALSE
-
Remote operation possible
-
FALSE
-
Time range
-
0.5…10 Second
-
Suitable as remote control
-
FALSE
