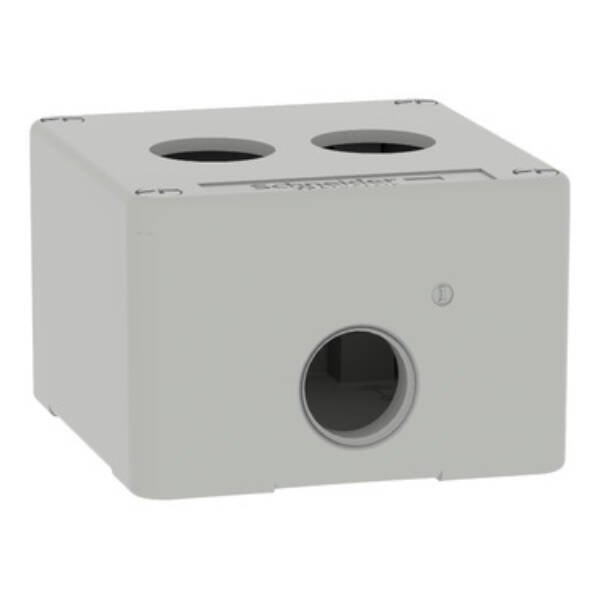

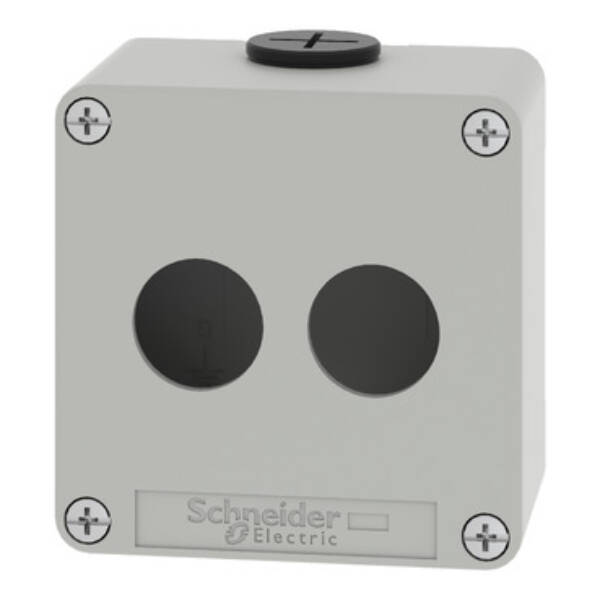

This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD1202 is an empty enclosure with grey color (RAL7035). This version with 2 holes allows combination of XB4/XB5 functions in a small volume. The size remains compact. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M20 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 80mm (height) x 51.5mm (depth) and it weighs 0.450kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE, UL, cULus and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines.

Brand

Schneider Electric

Range

Harmony XAM, XAP

Part No

XAPD1202

Weight (kg)

0.53 kg

Type

Harmony XAM, XAP

Width

80

Height

80

Degree of protection (IP)

IP65/IP67

Colour housing cover

Grey

Number of command positions

2

Degree of protection (NEMA)

Other

Housing material quality

Other

Diameter openings

22.5

Housing material

Zinc

Depth

51.5

Construction type housing

Surface mounted housing
