Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with lockable test button, mixed terminals socket, 24 V DC - Schneider Electric - RXM4AB1BDPVM
Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with lockable test button, mixed terminals socket, 24 V DC - Schneider Electric - RXM4AB1BDPVM

RXM4AB1BDPVM

Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with lockable test button, mixed terminals socket, 24 V DC - Schneider Electric - RXM4AB1BDPVM

Control

List Price £24.30 +VAT

Our Price £18.23 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

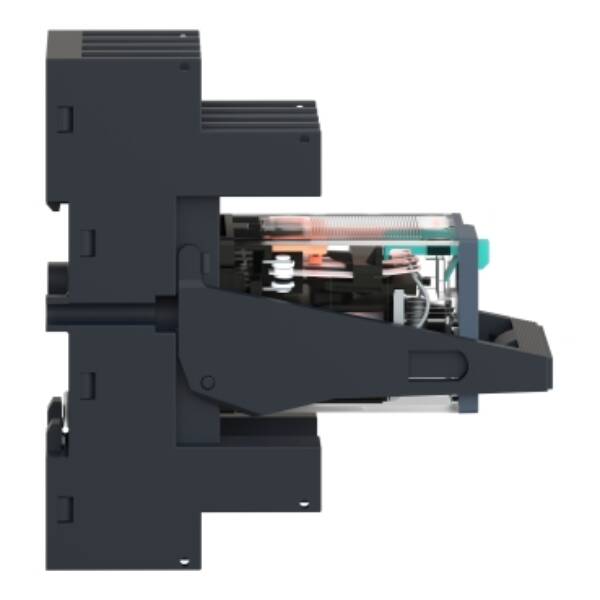

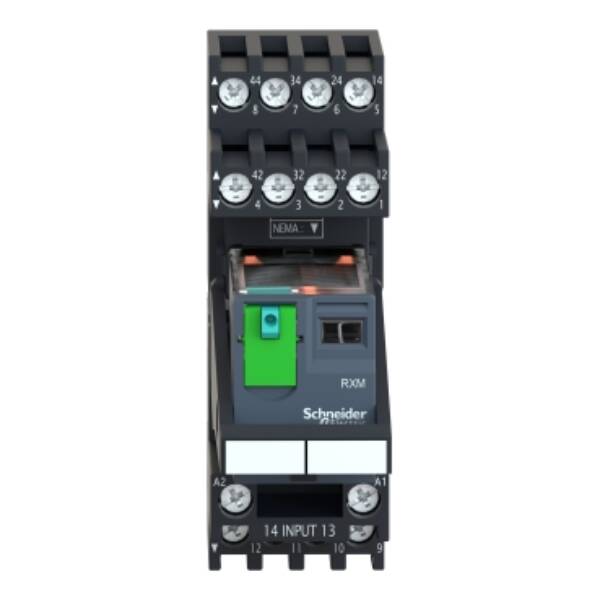

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 6A, 24Vdc, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button. The miniature relay socket connection is by screw connector or screw clamp terminal type. This pre-assembled relay weighs 0.099Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RXM4AB1BDPVM
Weight (kg)
0.09 kg
Type
Harmony Electromechanical Relays
Width
27
Type of electric connection
Plug-in connection
Drive, switching attitude
Mono stable
With forced-guided contacts
FALSE
Nominal current
6
With LED indication
FALSE
Drive, polarization
Polarity free
Depth
78
Type of switch contact
Other
Complete with socket
TRUE
Number of contacts as change-over contact
4
Voltage type for actuating
DC
Height
79
Rated control supply voltage Us at DC
24 V
Degree of protection (IP)
IP20
With detachable clamps
TRUE

Datasheet for RXM4AB1BDPVM - Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with lockable test button, mixed terminals socket, 24 V DC - Schneider Electric - RXM4AB1BDPVM
