RXM4AB2P7PVM
RXM4AB2P7PVM

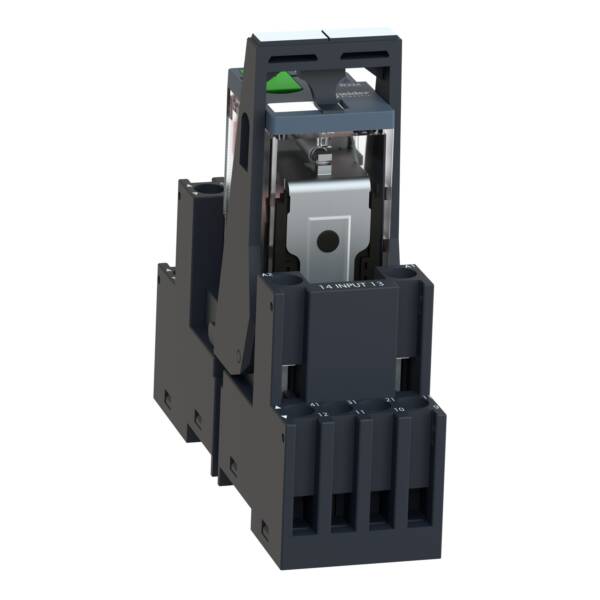

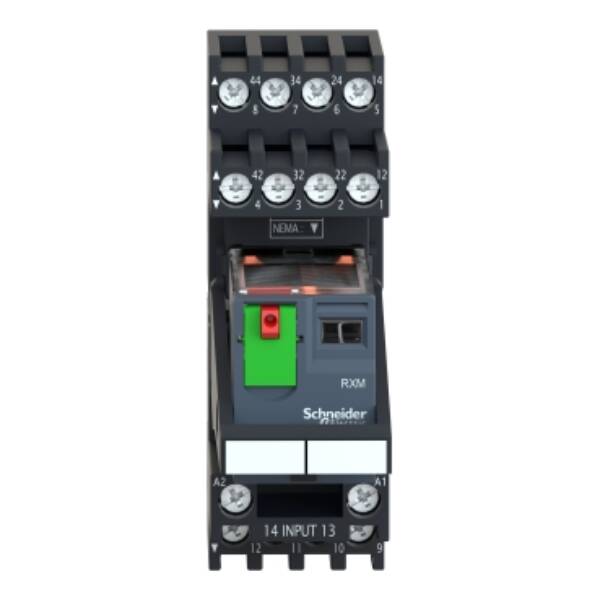

Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with LED, with lockable test button, mixed terminals socket, 230 V AC - Schneider Electric - RXM4AB2P7PVM
Control
List Price £25.96
+VAT
Our Price £19.47
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 6A, 230Vac, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector or screw clamp terminal type. This pre-assembled relay weighs 0.099Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RXM4AB2P7PVM
Weight (kg)
0.10 kg
Type
Harmony Electromechanical Relays
Width
27
Rated control supply voltage Us at AC 50HZ
0…230 V
Rated control supply voltage Us at AC 60HZ
0…230 V
Drive, switching attitude
Mono stable
Type of electric connection
Plug-in connection
With forced-guided contacts
FALSE
Nominal current
6
With LED indication
TRUE
Drive, polarization
Polarity free
Type of switch contact
Other
Depth
78
Complete with socket
TRUE
Number of contacts as change-over contact
4
Height
79
Voltage type for actuating
AC
Degree of protection (IP)
IP20
With detachable clamps
TRUE
Datasheet for RXM4AB2P7PVM - Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with LED, with lockable test button, mixed terminals socket, 230 V AC - Schneider Electric - RXM4AB2P7PVM
Download
