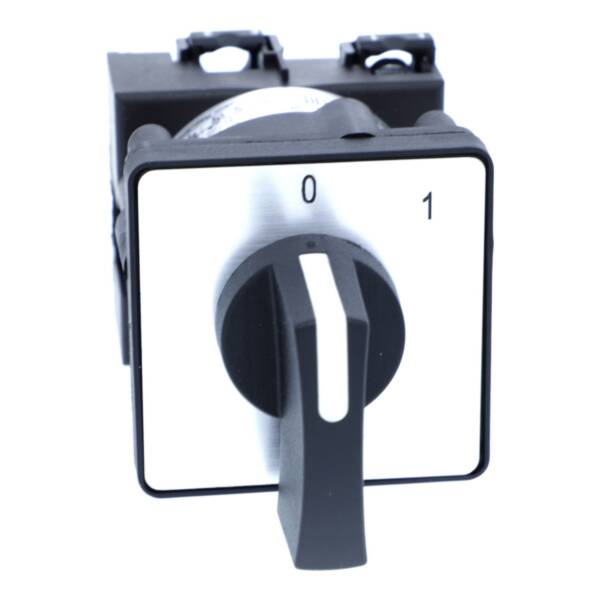

Harmony K1, K2, Cam switch, 3 poles , 45°, 12 A, screw mounting - Schneider Electric - K1C003ALH
Harmony K1, K2, Cam switch, 3 poles , 45°, 12 A, screw mounting - Schneider Electric - K1C003ALH

K1C003ALH

Harmony K1, K2, Cam switch, 3 poles , 45°, 12 A, screw mounting - Schneider Electric - K1C003ALH

Control

List Price £33.63 +VAT

Our Price £25.22 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This K1 3-pole cam switch is ideal for direct control of simple machines, switchboards and control panels, has a rated voltage of 690V AC and a rated current of 12A. It has a square shape and a metallic legend with black marking. It is IP65 and installs with screws. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
Brand
Schneider Electric
Range
Harmony K
Part No
K1C003ALH
Weight (kg)
0.15 kg
Type
Harmony K
Type of electrical connection of main circuit
Screw connection
With retraction in 0-position
FALSE
With 0 (off) position
TRUE
Type of control element
Long turning handle
Model
On/Off switch
Rated operation power at AC-3, 400 V
1.5
Degree of protection (IP), front side
IP40
Rated permanent current Iu
12
Complete device in housing
TRUE
Suitable for front mounting 4-hole
TRUE
Number of poles
3
Suitable for distribution board installation
FALSE
Rated operation current Ie at AC-3, 400 V
3.3
Suitable for intermediate mounting
TRUE
Suitable for ground mounting
FALSE

Datasheet for K1C003ALH - Harmony K1, K2, Cam switch, 3 poles , 45°, 12 A, screw mounting - Schneider Electric - K1C003ALH
