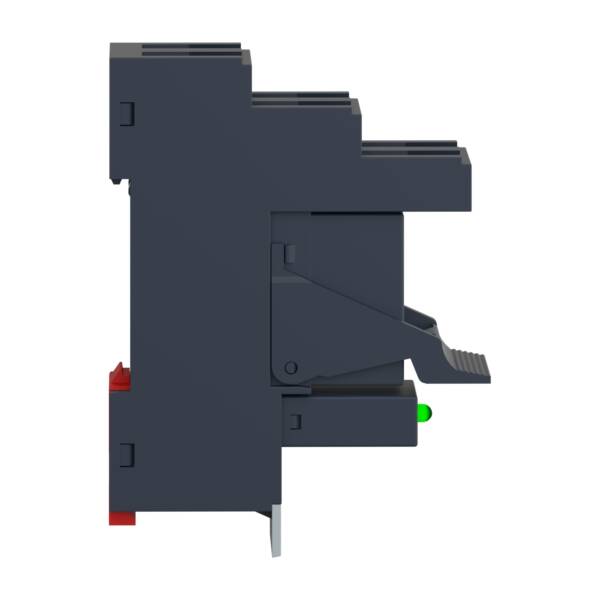

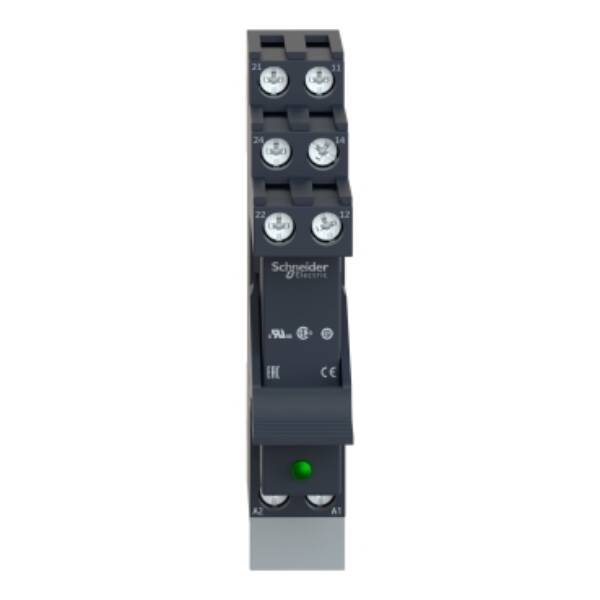

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 8A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.

Brand

Schneider Electric

Range

Harmony Electromechanical Relays

Part No

RSB2A080BDPV

Weight (kg)

0.06 kg

Type

Harmony Electromechanical Relays

Width

64

Drive, switching attitude

Mono stable

Type of electric connection

Plug-in connection

With forced-guided contacts

FALSE

Nominal current

8

With LED indication

TRUE

Drive, polarization

Polarity free

Depth

15

Type of switch contact

Other

Complete with socket

TRUE

Number of contacts as change-over contact

2

Voltage type for actuating

DC

Height

84

Rated control supply voltage Us at DC

0…24 V

Degree of protection (IP)

IP20

With detachable clamps

TRUE
