RSB2A080B7PV
RSB2A080B7PV

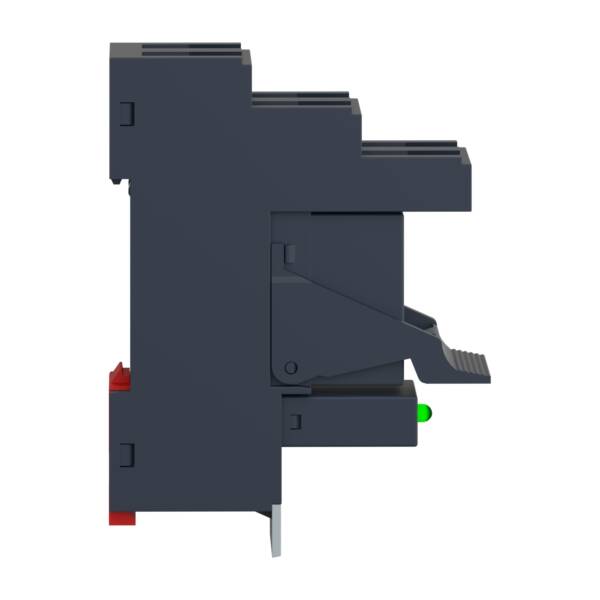

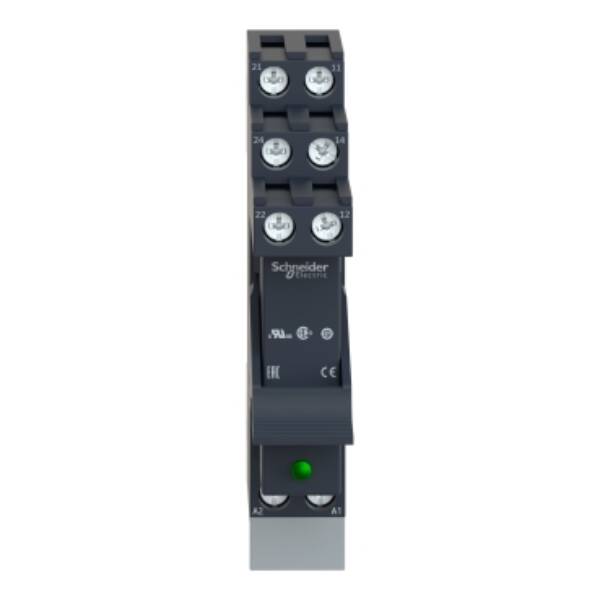

Harmony, Interface plug-in relay pre-assembled, 8 A, 2 CO, with LED, with protection circuit, 24 V AC - Schneider Electric - RSB2A080B7PV
Control
List Price £24.72
+VAT
Our Price £18.54
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. This is a 8A, 24Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RSB2A080B7PV
Weight (kg)
0.06 kg
Type
Harmony Electromechanical Relays
Width
64
Rated control supply voltage Us at AC 50HZ
0…24 V
Rated control supply voltage Us at AC 60HZ
0…24 V
Type of electric connection
Plug-in connection
Drive, switching attitude
Mono stable
With forced-guided contacts
FALSE
Nominal current
8
With LED indication
TRUE
Drive, polarization
Polarity free
Type of switch contact
Other
Depth
15
Complete with socket
TRUE
Number of contacts as change-over contact
2
Height
84
Voltage type for actuating
AC
Degree of protection (IP)
IP20
With detachable clamps
TRUE
Datasheet for RSB2A080B7PV - Harmony, Interface plug-in relay pre-assembled, 8 A, 2 CO, with LED, with protection circuit, 24 V AC - Schneider Electric - RSB2A080B7PV
Download
