RXG21BDPV
RXG21BDPV
Harmony, Interface plug-in relay pre-assembled, 5 A, 2 CO, with lockable test button, with protection circuit, 24 V DC - Schneider Electric - RXG21BDPV
Control
List Price £19.00
+VAT
Our Price £14.25
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads

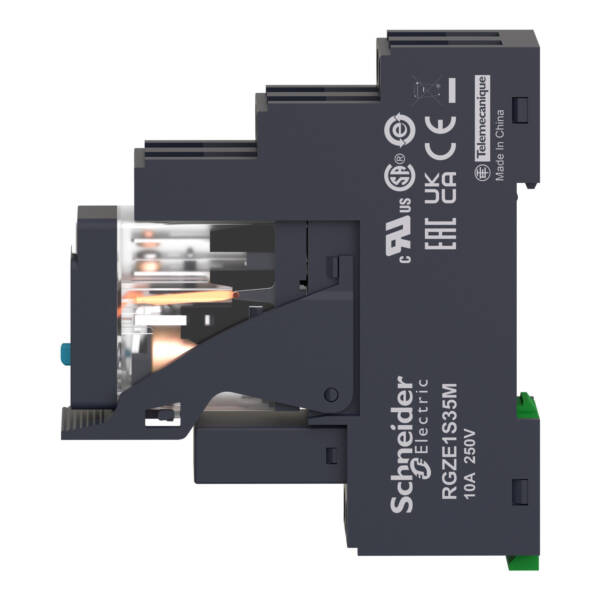

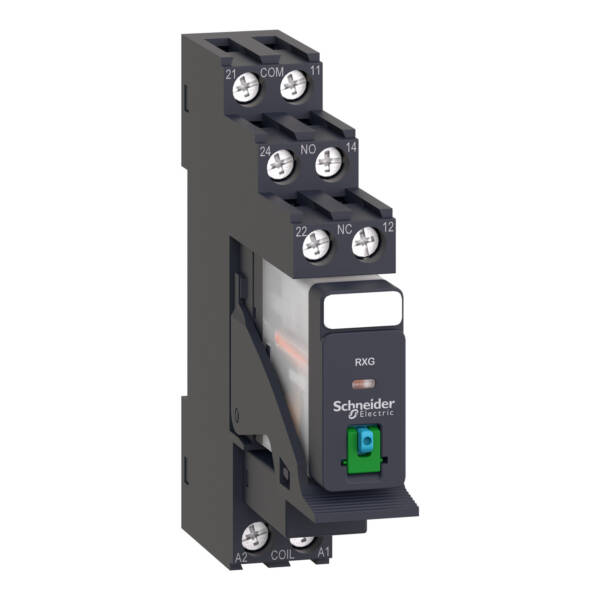

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a diode protection module. This is a 5A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers single-step lockable test button. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RXG21BDPV
Weight (kg)
0.07 kg
Type
Harmony Electromechanical Relays
Width
15
craft\elements\db\ElementQuery
Plug-in connection
craft\elements\db\ElementQuery
Mono stable
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
5
craft\elements\db\ElementQuery
Polarity free
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
Other
Depth
72
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
2
Height
79
craft\elements\db\ElementQuery
DC
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
TRUE
Datasheet for RXG21BDPV - Harmony, Interface plug-in relay pre-assembled, 5 A, 2 CO, with lockable test button, with protection circuit, 24 V DC - Schneider Electric - RXG21BDPV
Download
